/ / / / / / / / (27.100.0201) - AXLE, REAR DRIVE - BRAKE, DIFFERENTIAL

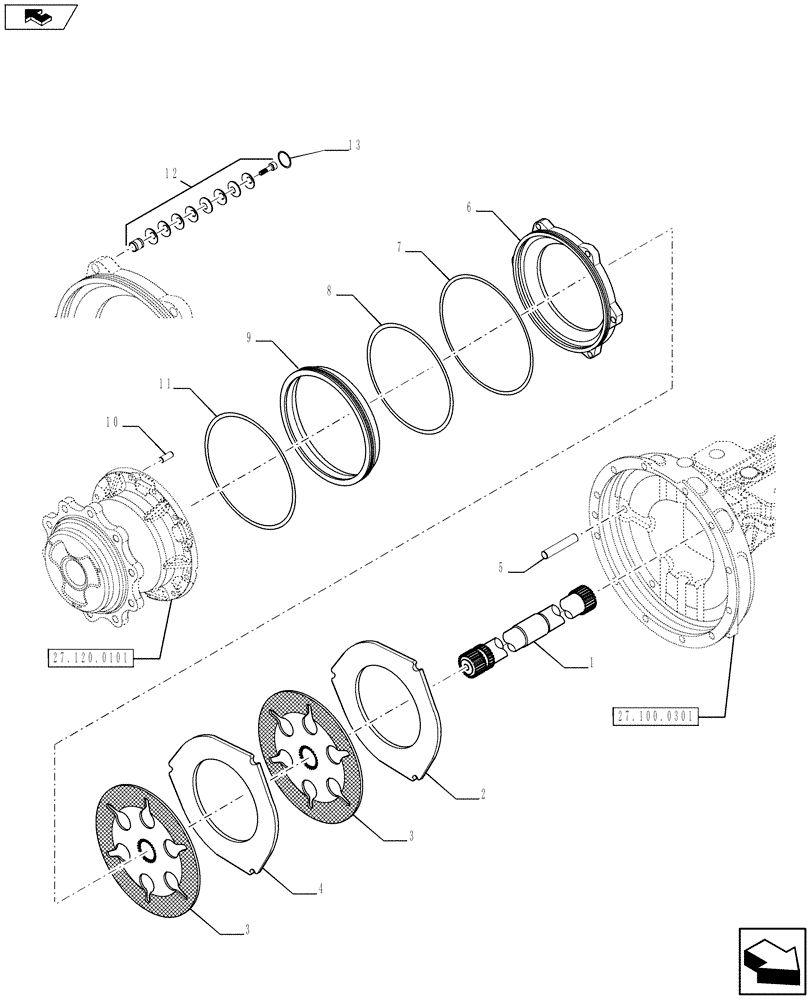

Запчасти Case 590SN (27.100.0201) - AXLE, REAR DRIVE - BRAKE, DIFFERENTIAL (27) - REAR AXLE SYSTEM
7
10
3
3
27.100.0301
home
27.120.0101
1
5
12
11
9
4
6
2
8
13
1
87708966
SHAFT,750T / 15T
2шт.
2
87708433
BRAKE PLATE,5mm Thk
2шт.
3
87708434
BRAKE PLATE
4шт.
4
87708435
BRAKE PLATE,8mm Thk
2шт.
5
139294A1
GUIDE
6шт.
6
87708436
BRAKE CYLINDER
2шт.
7
87708438
O-RING
2шт.
8
371144A1
O-RING
2шт.
9
87708440
PISTON
2шт.
10
D142890
DOWEL
2шт.
11
371145A1
O-RING
2шт.
12
87708441
BRAKE ADJUSTER,0.6mm
6шт.
13
87708442
CIRCLIP
6шт.
