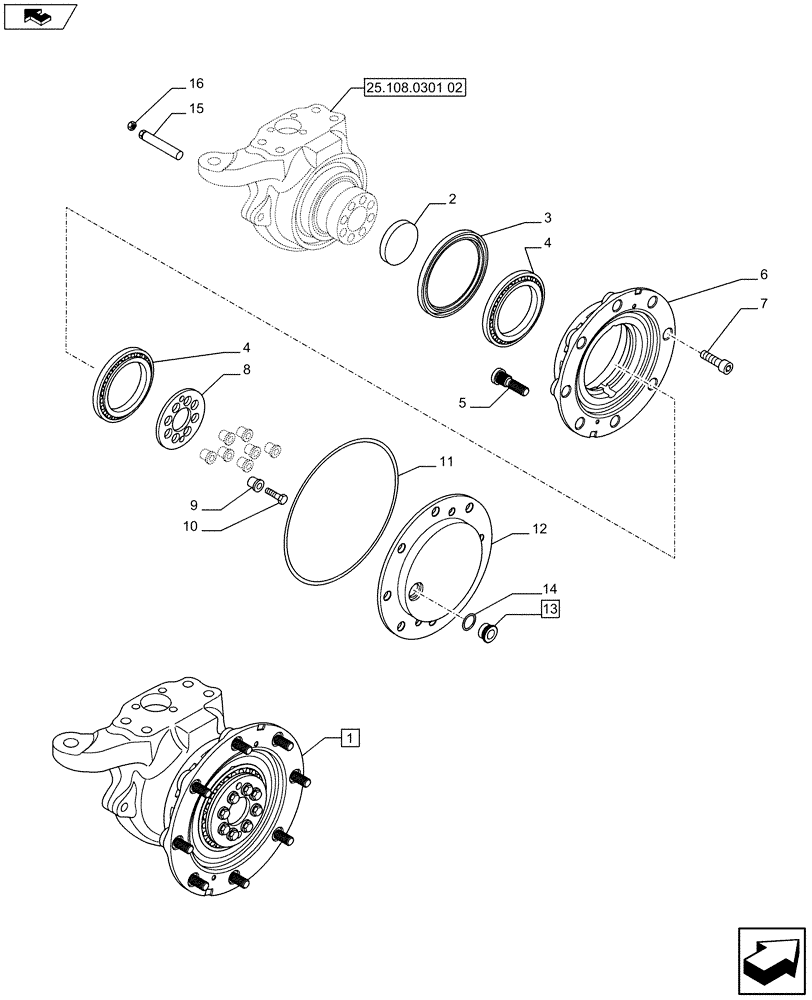

Запчасти Case 590SN (25.108.0301[01]) - STEERING KNUCKLE, 2WD (25) - FRONT AXLE SYSTEM

1

84230266

STEERING KNUCKLE

RH, Assy, Incl 2 - 6, 8 - 10, 15, 16

1шт.

1

84230269

STEERING KNUCKLE

LH, Assy, Incl 2 - 6, 8 - 10, 15, 16

1шт.

2

84211247

PLUG

1шт.

3

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

1шт.

4

84545376

TAPERED BEARING,109.54mm ID x 158.7mm OD x 23.020mm L

158.75mm x 109.538mm x 23.02mm

2шт.

5

84264323

STUD,M18 x 1.5 x 71.2mm

8шт.

6

84297567

HUB

1шт.

7

13028524

SCREW,M8 x 20mm

4шт.

8

84211140

FLANGE

1шт.

9

84252637

SLEEVE,12.55mm ID x 20.080mm OD x 25mm Thk

8шт.

10

84273747

LOCK BOLT,Hex, M12 x 1.75 x 45mm, LH Thd

8шт.

11

14468780

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

12

84210797

COVER

1шт.

13

84272055

PLUG,M30 x 2

Assy, Incl 14

1шт.

14

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

15

87751873

SCREW,M18 x 105mm, Cl 10.9

1шт.

16

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

1шт.
