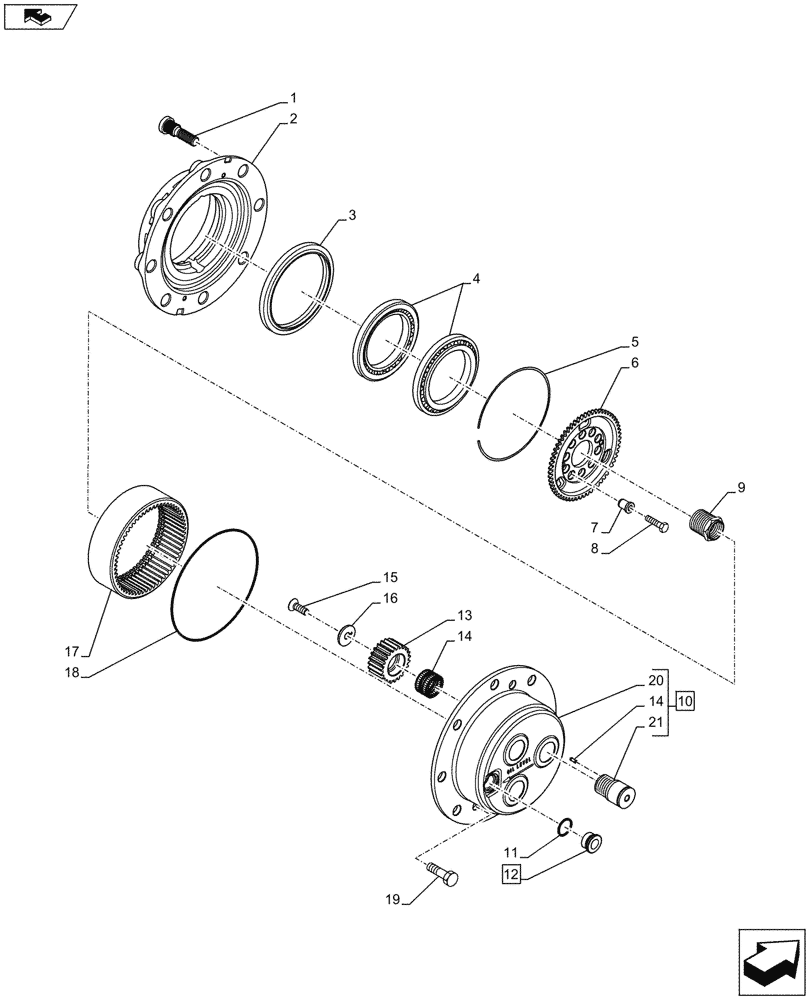

Запчасти Case 590SN (25.108.0201[02]) - PLANETARY HUB, 4WD (25) - FRONT AXLE SYSTEM

1

84264323

STUD,M18 x 1.5 x 71.2mm

8шт.

2

84297567

HUB

1шт.

3

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

1шт.

4

NSS

NOT SOLD SEPARAT

2шт.

5

5165162

SNAP RING,M50, Int

1шт.

6

84259703

GEAR,60T

1шт.

7

84252637

SLEEVE,12.55mm ID x 20.080mm OD x 25mm Thk

8шт.

8

84273747

LOCK BOLT,Hex, M12 x 1.75 x 45mm, LH Thd

8шт.

9

84316956

NUT,M45 x 1.5, 88.5mm L

2шт.

10

84249603

CARRIER

1шт.

11

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

12

84272055

PLUG,M30 x 2

Assy, Incl 14 (Qty 3)

1шт.

13

84183899

PLANETARY GEAR,23T

3шт.

14

84380206

NEEDLE ROLLER,4mm OD x 12mm L

207шт.

15

84273745

SCREW

3шт.

16

84271320

RETAINER,13mm ID, 43.8mm OD

3шт.

17

87748929

RING GEAR,60T

1шт.

18

14468780

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

19

13028524

SCREW,M8 x 20mm

4шт.

20

NSS

NOT SOLD SEPARAT

Carrier Planetary, Incl in 10

1шт.

21

84299881

PIN,39.4mmOD x 73mm L

3шт.
