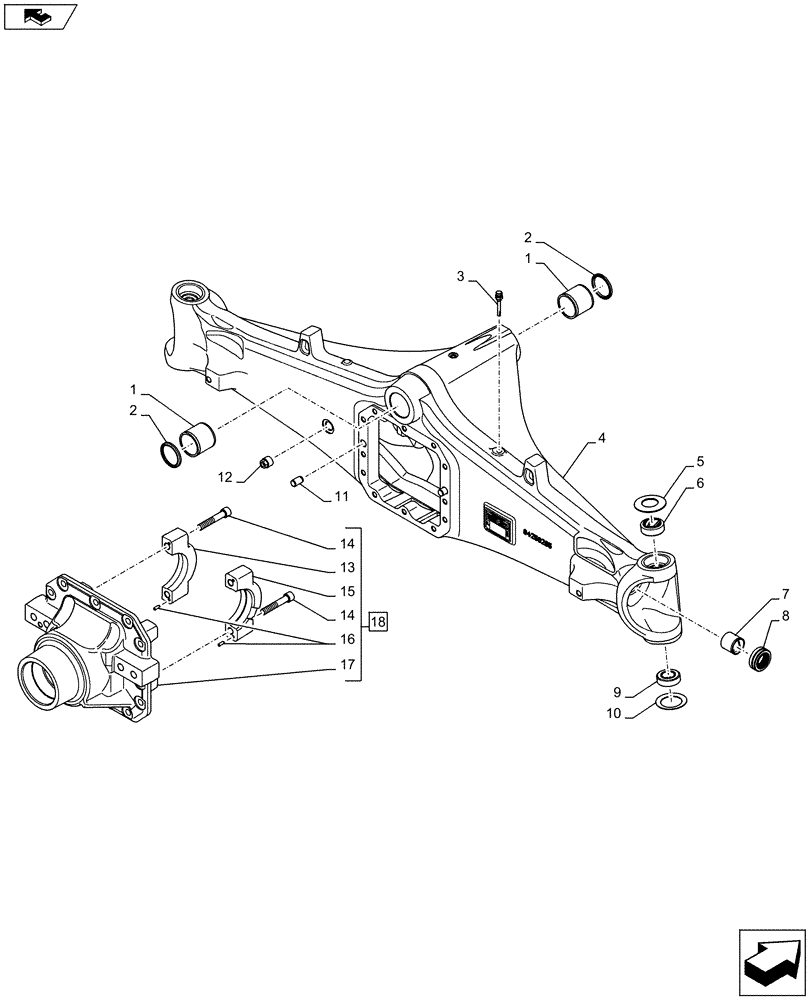

Запчасти Case 590SN (25.100.0801) - COVER, SPHERICAL BEARING, 4WD (25) - FRONT AXLE SYSTEM

1

87748946

BUSHING,50.21mm ID x 60.03mm OD x 54mm L

2шт.

2

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

2шт.

3

84258517

BREATHER,M10 x 1

1шт.

4

84310708

AXLE

1шт.

5

84241623

SPRING,Belleville, 36.13mm ID x 70.85mm OD x 2.26mm Thk

2шт.

6

84241615

GROOVED BUSHING,35mm ID x 52mm OD x 20mm L

2шт.

7

84266996

BUSHING,35.13mm ID x 39.11mm OD x 35mm L

2шт.

8

84266933

SEAL,35mm ID x 52mm OD x 18.5mm Thk

2шт.

9

87523063

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

2шт.

10

84241624

SPRING,Belleville, 47.63mm ID x 69.85mm OD x 0.97mm Thk

2шт.

11

4985062

DOWEL,15mm OD x 25mm L

2шт.

12

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

13

NSS

NOT SOLD SEPARAT

Bearing Cap Left, Incl in 18

1шт.

14

84273748

BOLT,Hex, Lock, M12 x 1.75 x 70mm, Cl. 10.9

4шт.

15

NSS

NOT SOLD SEPARAT

Bearing Cap Right, Incl in 18

1шт.

16

4966244

PIN,5mm OD x 15mm L

4шт.

17

NSS

NOT SOLD SEPARAT

Cover Differential, Incl in 18

1шт.

18

84299349

DIFFERENTIAL ASSY

Incl 13 - 17

1шт.
