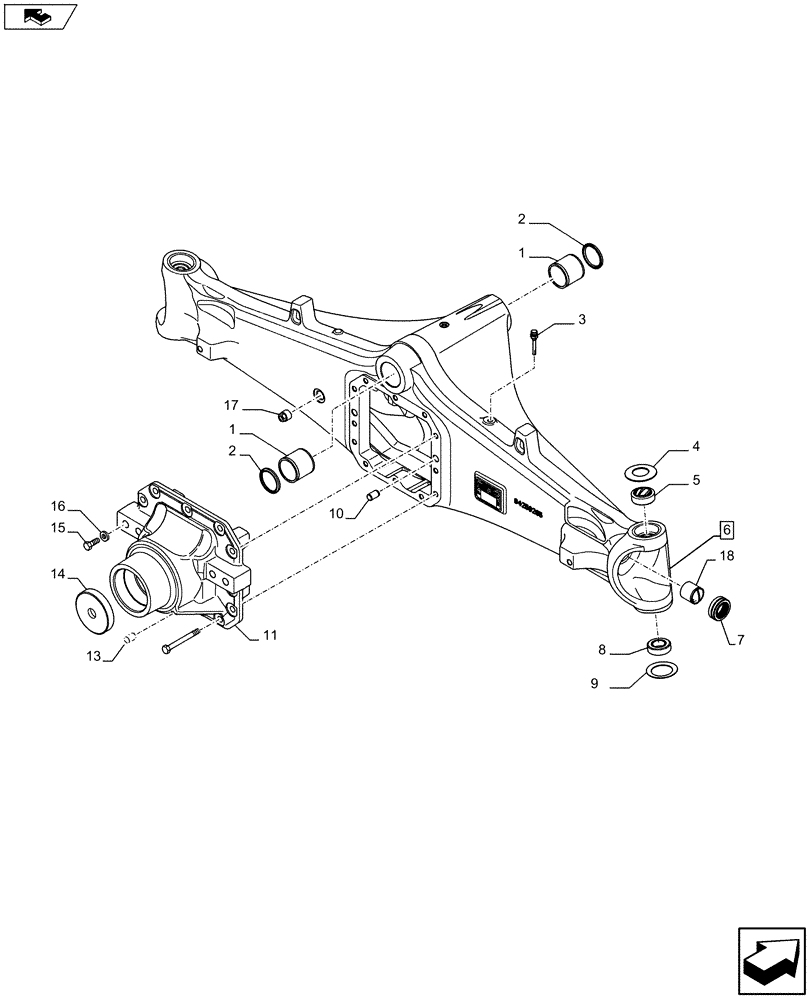

Запчасти Case 590SN (25.100.0401) - COVER, SPHERICAL BEARING, 2WD (25) - FRONT AXLE SYSTEM

1

87748946

BUSHING,50.21mm ID x 60.03mm OD x 54mm L

2шт.

2

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

2шт.

3

84258517

BREATHER,M10 x 1

1шт.

4

84241623

SPRING,Belleville, 36.13mm ID x 70.85mm OD x 2.26mm Thk

2шт.

5

84241615

GROOVED BUSHING,35mm ID x 52mm OD x 20mm L

2шт.

6

84310708

AXLE

Assy, Incl 18

1шт.

7

84211202

PLUG

2шт.

8

87523063

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

2шт.

9

84241624

SPRING,Belleville, 47.63mm ID x 69.85mm OD x 0.97mm Thk

2шт.

10

4985062

DOWEL,15mm OD x 25mm L

2шт.

11

84299348

COVER

1шт.

12

84273744

LOCK BOLT,Hex, Lock, M12 x 1.75 x 30mm, Cl. 10.9

12шт.

13

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

14

84211606

PLUG

1шт.

15

84273750

LOCK BOLT

4шт.

16

84349418

WASHER,19mm ID x 34mm OD x 3mm Thk

4шт.

17

10839710

DOWEL,M10 x 15.00mm

1шт.

18

84266996

BUSHING,35.13mm ID x 39.11mm OD x 35mm L

2шт.
