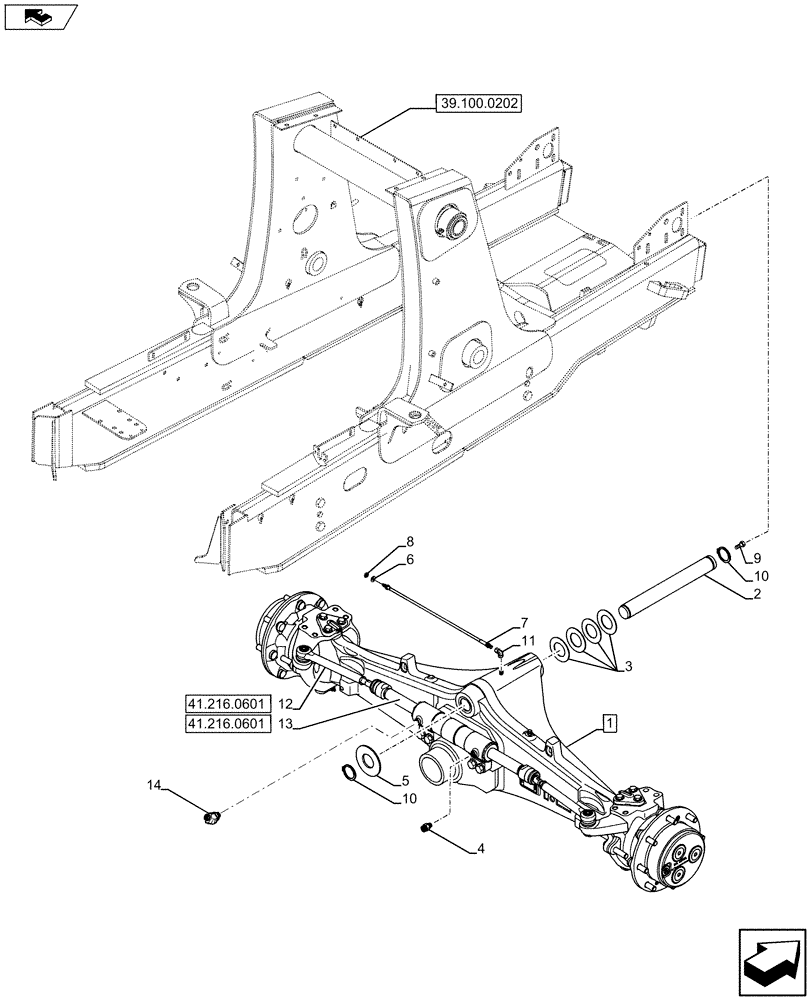

Запчасти Case 590SN (25.100.0301) - STEERING AXLE, STEERING CYLINDER, 2WD (25) - FRONT AXLE SYSTEM

1

84221138

STEERING AXLE

Assy

1шт.

2

87404197

PIVOT PIN,50mm OD x 426.5mm L

1шт.

3

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

4шт.

4

9992342

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

5

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

1шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

7

87572760

HOSE ASSY.,6.4mm ID x 533mm L

1шт.

8

F53473

LOCK NUT,1/8-27 NPSM

1шт.

9

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

10

800-44050

SNAP RING,M50, Ext

2шт.

11

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

1шт.

12

84264410

TIE-ROD,397mm L

Assy

2шт.

13

84264406

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke

Assy

1шт.

14

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.
