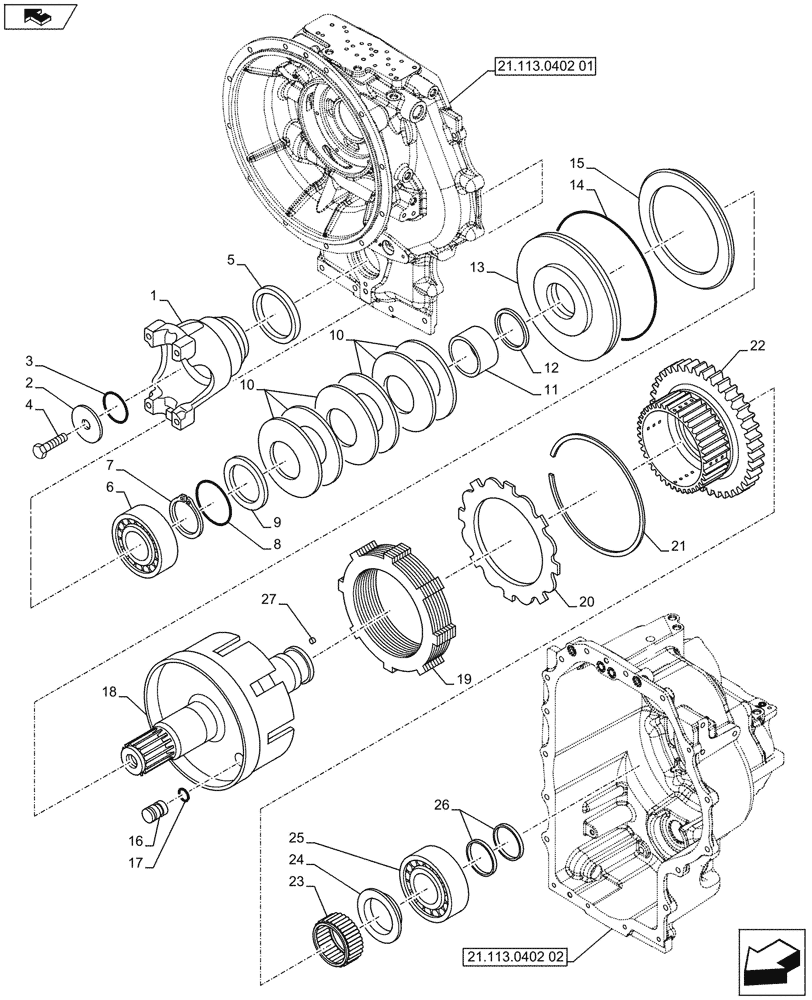

Запчасти Case 590SN (21.155.16) - VAR - 423062 - TRANSMISSION - 4WD POWERSHIFT H TYPE - SHAFT, OUTPUT (21) - TRANSMISSION

1

87705564

FLANGE

Powershift Transmission, Output Shaft

1шт.

2

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

1шт.

3

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

4

P3533055

SCREW,M12 x 1.25 x 25mm

1шт.

5

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

1шт.

6

700524R91

BALL BEARING

1шт.

7

87705528

SNAP RING

1шт.

8

87705529

SHIM,0.1mm Thk

1шт.

8

87705530

SHIM,0.3mm Thk

1шт.

8

87705531

SHIM,0.5mm Thk

1шт.

9

87705543

THRUST WASHER

1шт.

10

87705544

BELLEVILLE WASHER

6шт.

11

87705545

SPACER

Output Shaft

1шт.

12

358645A1

SEALING RING

1шт.

13

87705547

PISTON

Clutch

1шт.

14

87705548

O-RING

1шт.

15

87705549

BRAKE PLATE

1шт.

16

87705551

PIN

3шт.

17

87705552

O-RING,11.91mm ID x 2.6mm Width

3шт.

18

87705550

SHAFT

Powershift Transmission, 4WD

1шт.

19

87705554

CLUTCH OVERHAUL KIT

Powershift Transmission

1шт.

20

87705555

CIRCLIP

1шт.

21

87705557

CIRCLIP,156.6mm OD x 2.5mm Thk

1шт.

22

87705560

GEAR,41T

Powershift Transmission, Output Shaft, Z=41

1шт.

23

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

24

358635A1

SPACER

Output Shaft

1шт.

25

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

26

87705562

SEAL KIT

2шт.

27

87705553

RIVET

D6

1шт.
