(21.155.01) - VAR - 423060 - TRANSMISSION - 2WD / 4WD, POWERSHIFT S-TYPE - PUMP, OIL

Запчасти Case 590SN (21.155.01) - VAR - 423060 - TRANSMISSION - 2WD / 4WD, POWERSHIFT S-TYPE - PUMP, OIL (21) - TRANSMISSION

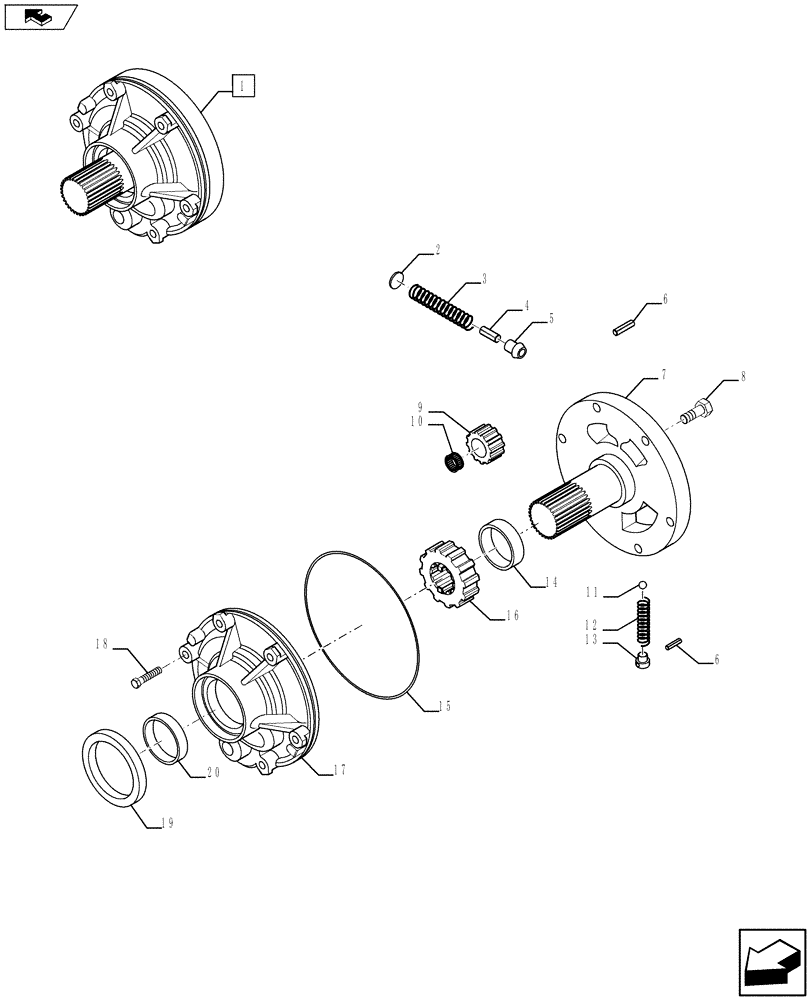

Схема запчастей Case 590SN - (21.155.01) - VAR - 423060 - TRANSMISSION - 2WD / 4WD, POWERSHIFT S-TYPE - PUMP, OIL (21) - TRANSMISSION
4
13
14
17
19
2
12
15
8
20
9
10
3
1
7
home
11
6
6
5
18
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87705431

HYDRAULIC PUMP

Assy, Incl 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Cotter Pin, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Cotter Pin, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

15

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

18

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

9шт.

19

87429971

OIL SEAL

1шт.

20

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.
