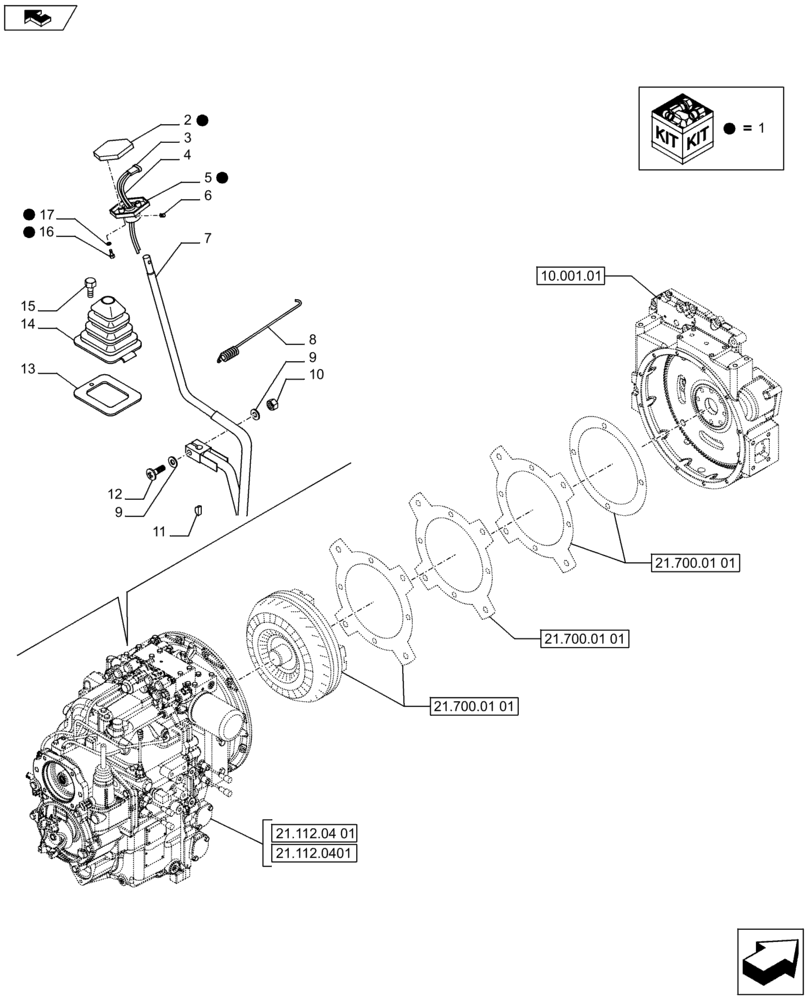

Запчасти Case 590SN (21.134.01) - VAR - 423000, 423058, 442082, 747853, 747854, 747855 - TRANSMISSION - LEVER (21) - TRANSMISSION

1

309747A1

KNOB

Assy, Incl 2, 5, 16, 17

1шт.

2

187714A1

KNOB

1шт.

3

87312712

SWITCH

1шт.

4

123809A2

WIRE HARNESS

1шт.

5

187715A1

KNOB

1шт.

6

484-6316

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

1шт.

7

379314A4

LEVER

1шт.

8

380537A2

SPRING,Extension, 20.10mm x 38mm L

1шт.

9

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

11

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

12

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

13

410561A1

SEAL,133mm L

1шт.

14

400588A2

BOOT

1шт.

15

87310096

BOLT,Hex, M6 x 25, Cl. 8.8, W/ Washer

1шт.

16

87020181

SCREW,Phillips Drive, Pan HD, #10 - 32 x 7/8"

2шт.

17

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.
