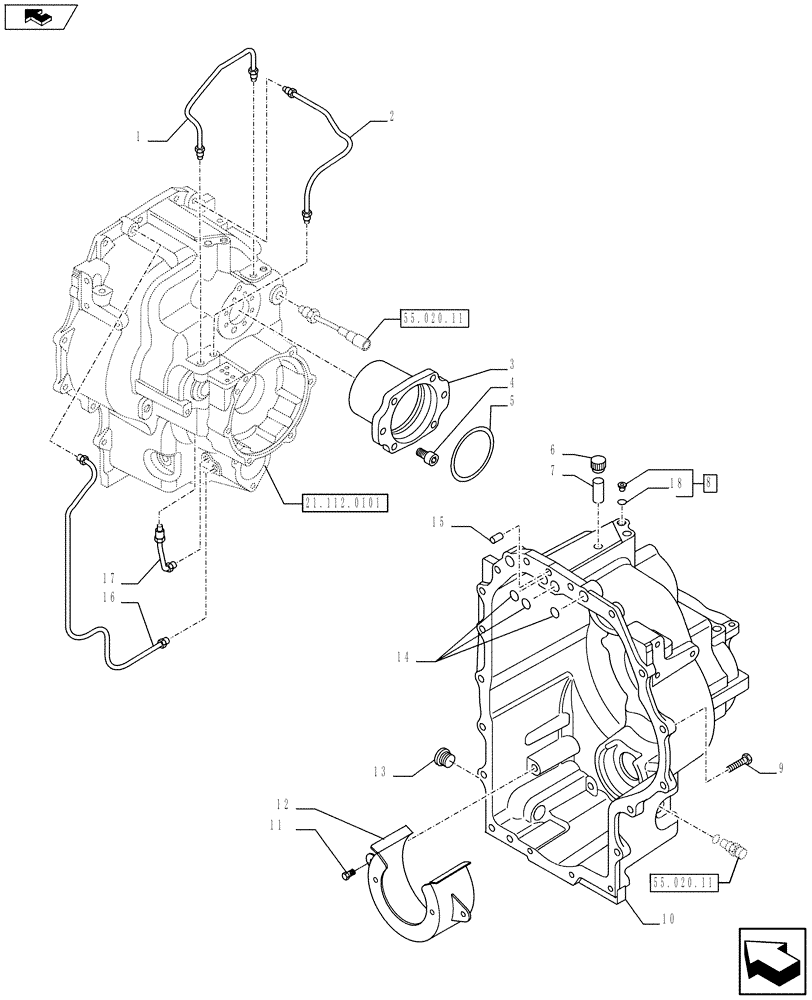

Запчасти Case 590SN (21.113.0402[02]) - VAR - 423062 - TRANSMISSION - 4WD POWERSHIFT H TYPE- HOUSING, REAR & THERMOSTAT (21) - TRANSMISSION

1

87705446

TUBE

1шт.

2

87705455

TUBE

1шт.

3

87701269

FLANGE

1шт.

4

87705895

BOLT,TCEI, M10 x 25mm, Cl 8.8

7шт.

6

1530028C1

BREATHER

1шт.

7

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

1шт.

8

9625178

PLUG,9/16" - 18 ORB

Assy, Incl 18

3шт.

9

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

13шт.

10

87705453

TRANSMISSION HOUSING

1шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

12

87705445

BRACKET

1шт.

13

100557A1

PLUG, DRAIN,M30 x 2

1шт.

14

181141A1

O-RING,17.12mm ID x 2.62mm Width

3шт.

15

K260177

PIN

2шт.

16

87705448

TUBE

1шт.

17

87705452

TUBE

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
