(21.113.01[01]) - VAR - 423060 - TRANSMISSION POWERSHIFT S-TYPE - MOUNTING - 2WD

Запчасти Case 590SN (21.113.01[01]) - VAR - 423060 - TRANSMISSION POWERSHIFT S-TYPE - MOUNTING - 2WD (21) - TRANSMISSION

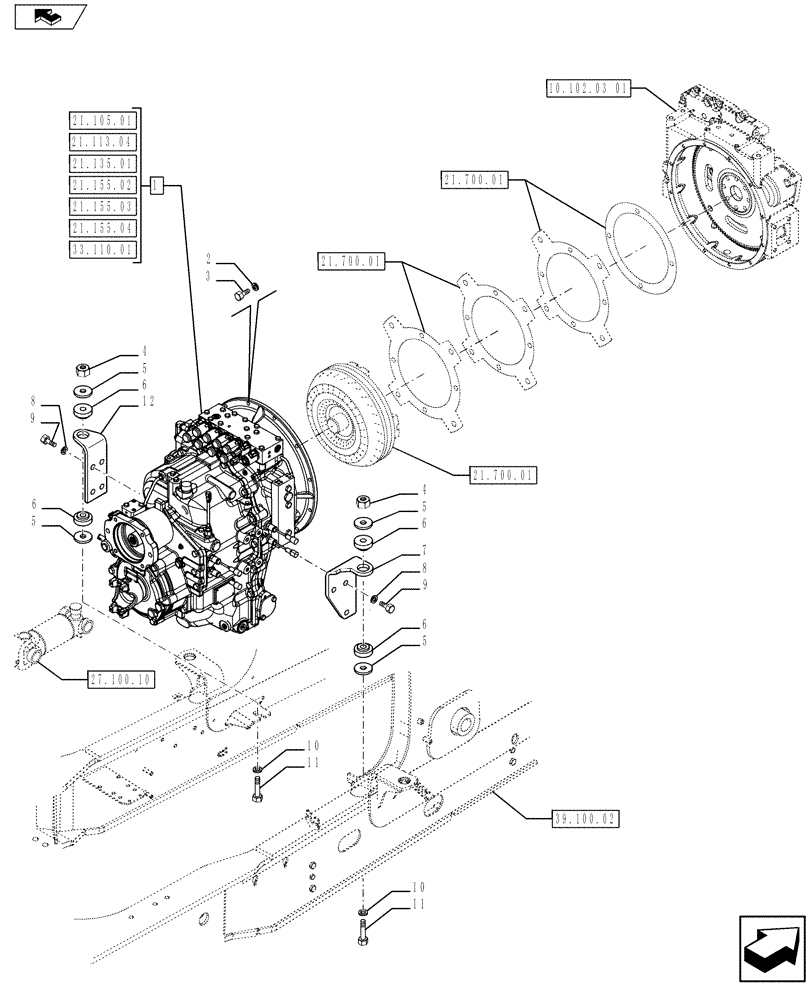

Схема запчастей Case 590SN - (21.113.01[01]) - VAR - 423060 - TRANSMISSION POWERSHIFT S-TYPE - MOUNTING - 2WD (21) - TRANSMISSION
21.105.01
6
21.700.01
11
9
10.102.03 01
4
21.135.01
21.155.03
21.700.01
11
2
6
21.155.02
5
6
8
5
7
10
6
27.100.10
3
1
9
21.700.01
21.155.04
8
home
5
39.100.02
12
10
5
4
21.113.04
33.110.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84327511

TRANSMISSION

Assy

1шт.

2

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

4

832-10416

NUT,M16 x 2, Cl 8

2шт.

5

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

4шт.

6

84383342

MOUNT

4шт.

7

84481522

MOUNT

1шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

7шт.

9

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

7шт.

10

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

2шт.

11

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

2шт.

12

84481525

MOUNT

1шт.
