(21.112.04[01]) - VAR - 423058 - STANDARD TRANSMISSION - MOUNTING - 2WD

Запчасти Case 590SN (21.112.04[01]) - VAR - 423058 - STANDARD TRANSMISSION - MOUNTING - 2WD (21) - TRANSMISSION

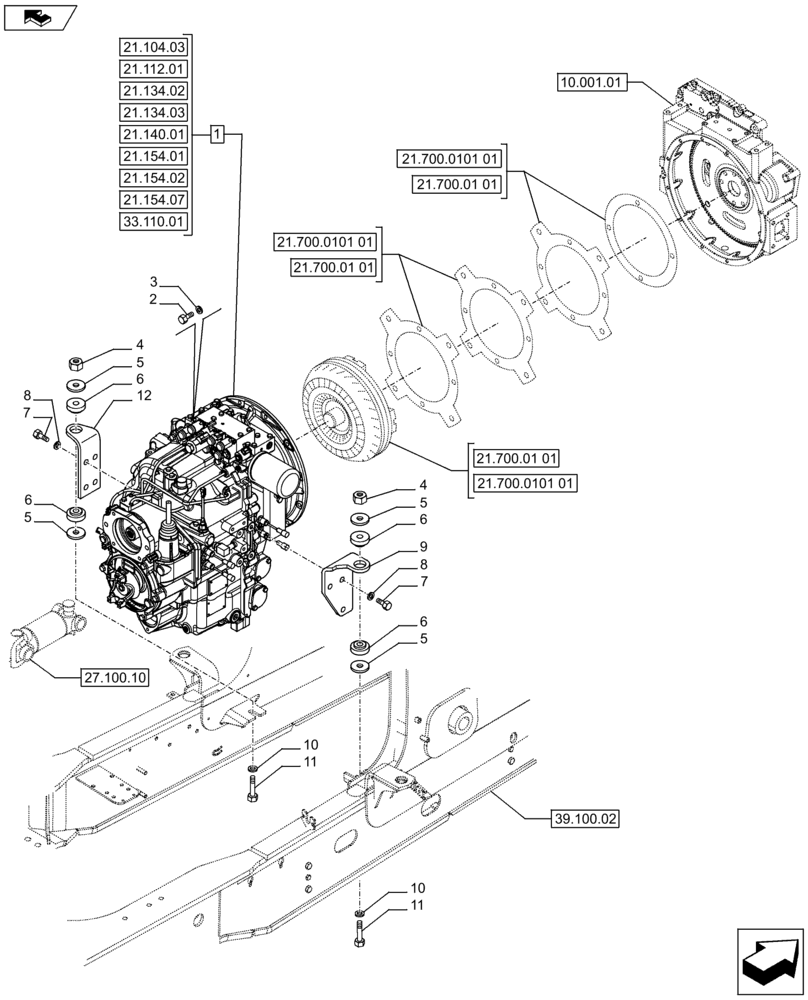

Схема запчастей Case 590SN - (21.112.04[01]) - VAR - 423058 - STANDARD TRANSMISSION - MOUNTING - 2WD (21) - TRANSMISSION
21.134.03
11
21.154.01
21.700.0101 01
21.700.01 01
5
5
21.154.07
home
21.154.02
21.700.0101 01
6
12
4
8
33.110.01
21.104.03
5
7
21.140.01
7
6
6
21.700.01 01
1
21.112.01
4
3
10
21.134.02
5
2
11
10.001.01
21.700.0101 01
9
10
39.100.02
27.100.10
8
6
21.700.01 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87395300

TRANSMISSION

Assy

1шт.

1

87395300R

REMAN-TRANSMISSION

Reman 2WD

1шт.

1

87395300C

CORE-TRANSMISSION

Return Number

1шт.

2

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

4

832-10416

NUT,M16 x 2, Cl 8

2шт.

5

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

4шт.

6

84383342

MOUNT

4шт.

7

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

7шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

7шт.

9

84481522

MOUNT

1шт.

10

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

2шт.

11

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

2шт.

12

84481525

MOUNT

1шт.
