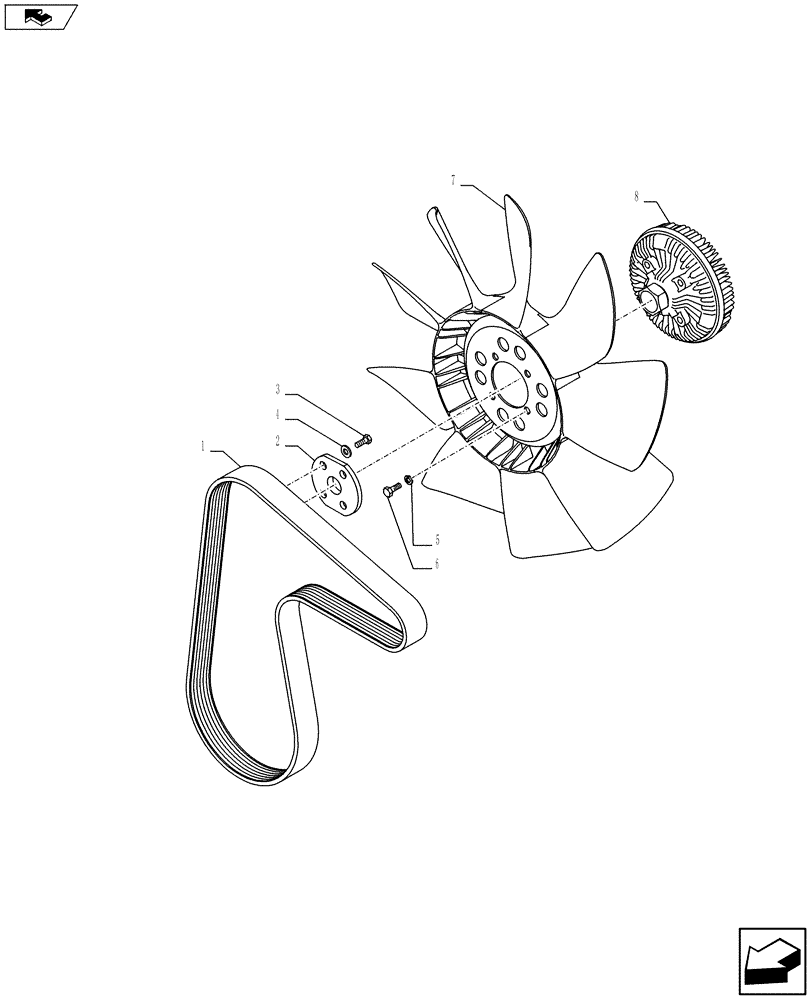

Запчасти Case 590SN (10.414.04) - ENGINE FAN - 9 BLADE (VISCOUS) (10) - ENGINE

1

84278183

BELT,28.28mm W x 1440mm L, 8 Ribs

1шт.

2

303192A1

ADAPTER

1шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

5

892-11008

LOCK WASHER,8mm ID

4шт.

6

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

7

277800A1

FAN,9 Blades, 500.1mm OD

1шт.

8

87340008

DRIVE

1шт.
