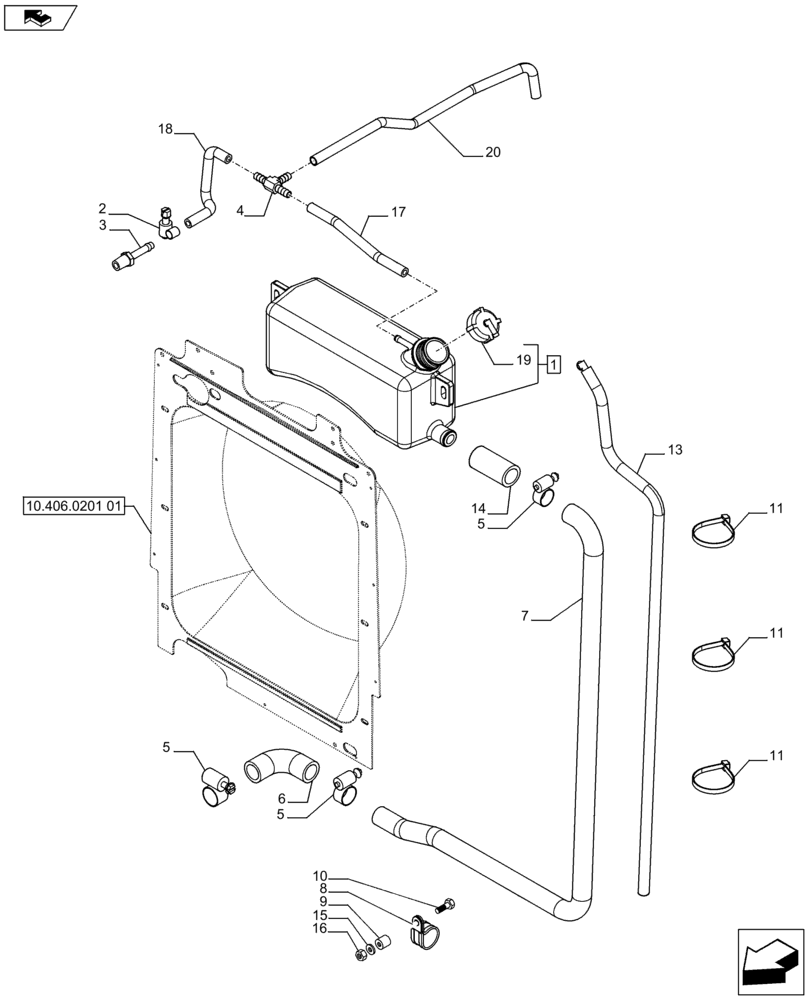

Запчасти Case 590SN (10.406.0201[02]) - VAR - 423000, 442082, 747853, 747854, 747855 - COOLANT EXPANSION RESERVOIR (10) - ENGINE

1

87674844

RESERVOIR, COOLANT E,3L

Assy, Contains 19

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

3

87301325

FITTING,5/16" Hose X 1/4" NPTF Beaded

1шт.

4

87721028

TEE

1шт.

5

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

6

87454376

HOSE,25mm ID, 29.95mm OD, 90 Degree

1шт.

7

87557237

TUBE,1" OD

1шт.

8

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

9

87418360

SPACER,9.8mm ID x 16mm OD x 16mm W

1шт.

10

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

12

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

13

87616934

HOSE,6.35mm ID x 750mm L, SAE 30R6

1шт.

14

87367622

HOSE,25.40 mm ID x 60.00 mm, SAE 20R3 CLASS D-1 Or D-2

1шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

17

87715652

HOSE,7.90 mm ID, SAE J30, SAE 30R6 Or SAE 20R4 Class D1

1шт.

18

87721260

RADIATOR HOSE,7.90 mm ID x 90.00 mm, SAE 30R6 Or SAE 20R4 Class D1

1шт.

19

85803019

RADIATOR CAP

1шт.

20

87721299

HOSE,8.30 mm ID x 390 mm, SAE 30R6 Or SAE 20R4 Class D1

1шт.
