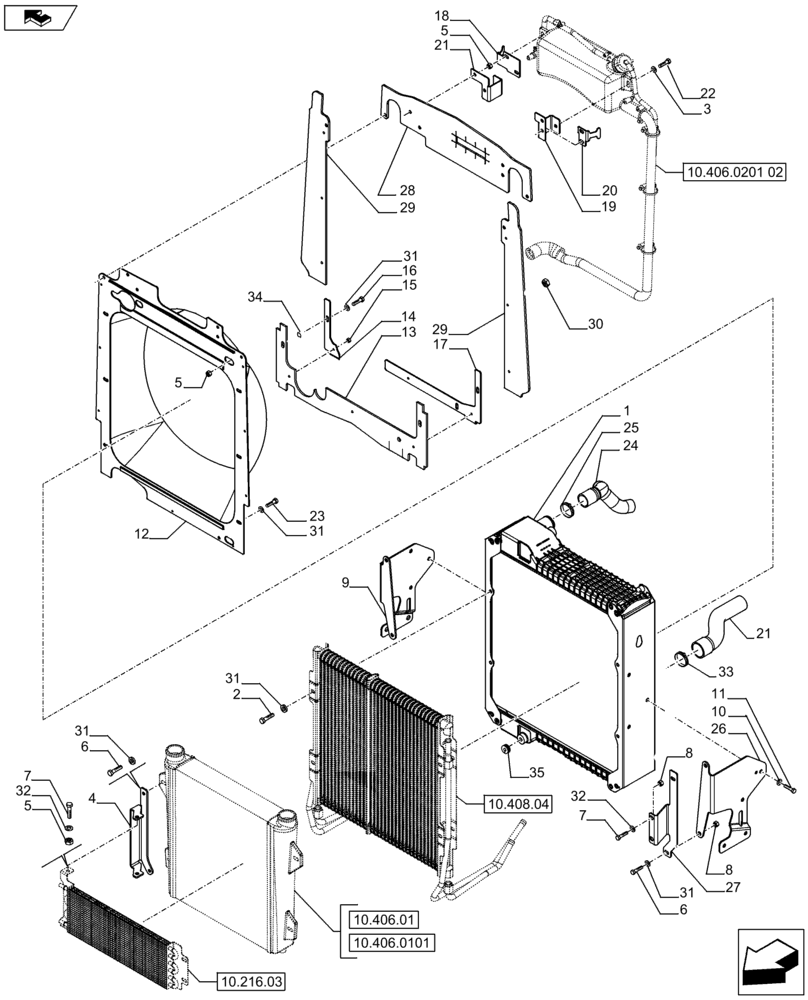

Запчасти Case 590SN (10.406.0201[01]) - VAR - 423000, 442082, 747853, 747854, 747855 - RADIATOR & SHROUD, MOUNTING PARTS (10) - ENGINE

1

87576645

RADIATOR

1шт.

2

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

4

87606977

BRACKET, PIVOT

1шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

9шт.

6

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

8

833-40408

NUT,M8, U

6шт.

9

87602286

BRACKET

1шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

12

87559003

SHROUD

1шт.

13

87434978

INSULATOR

1шт.

14

87446081

RETAINING PLATE,195mm x 62mm x 43mm L

1шт.

15

87301356

RIVET,Pop, 3/16" x .700"

3шт.

16

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

17

87446082

RETAINING PLATE,390mm x 195mm x 43mm L

1шт.

18

87548814

BRACKET

1шт.

19

87632870

BRACKET

1шт.

20

87548813

BRACKET

1шт.

21

87454378

RADIATOR HOSE,57.15 mm ID x 217.70 mm, SAE 20R4 CLASS D-1

1шт.

22

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

7шт.

23

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

4шт.

24

87528978

RADIATOR HOSE,45.00 mm ID x 76.50 mm, SAE J20, SAE 20 R4 Class C

1шт.

25

87647029

HOSE CLAMP,40-64mm

1шт.

26

87602287

BRACKET

1шт.

27

87606979

BRACKET

1шт.

28

87628324

SEAL,614mm L

1шт.

29

87628308

INSULATOR

2шт.

30

87301355

RIVET,Pop, 3/16" x .575"

6шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

32

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

14шт.

33

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

1шт.

34

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

2шт.

35

IH76904

VALVE

1шт.
