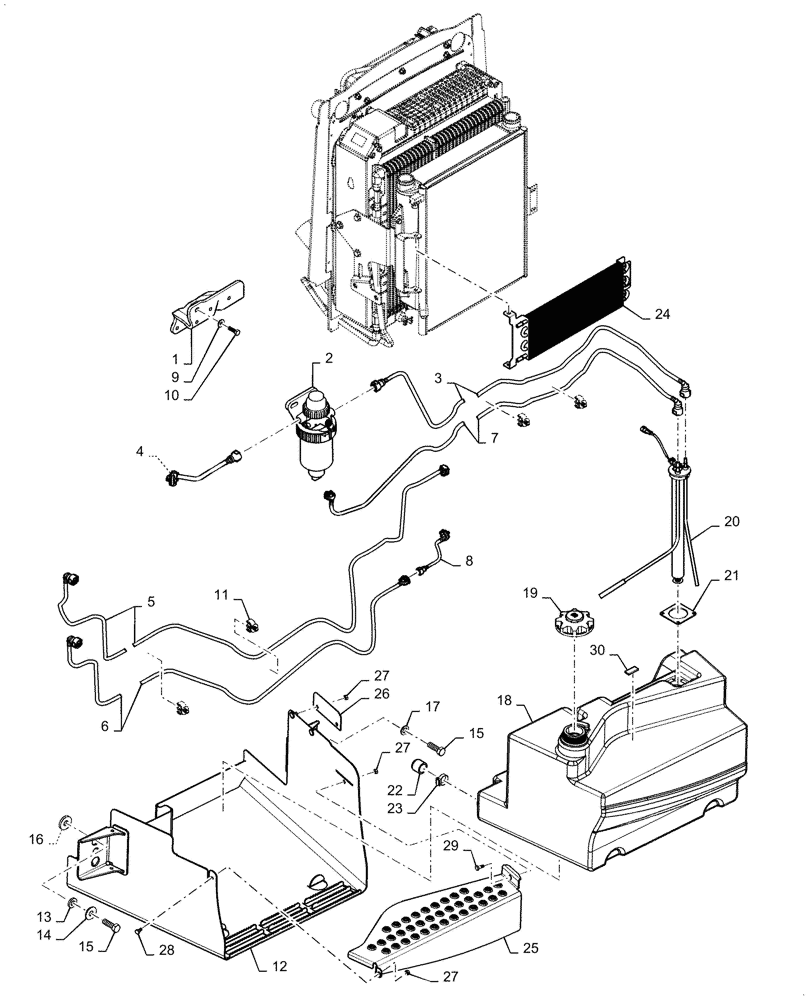

Запчасти Case 590SN (10.214.01[02]) - FUEL LINES, RESERVOIR (580SN, 580SN WT, 590SN) (10) - ENGINE

1

87666514

BRACKET

1шт.

2

84296193

FUEL FILTER

Assembly

1шт.

2

87803445

FUEL FILTER,79.2mm OD x 4.3" L, 30 Microns

Element

1шт.

2

87612475

SENSOR

Water In Fuel (WIF) Sensor

1шт.

3

84293553

LINE

1шт.

4

84332638

LINE

1шт.

5

84293556

TUBE

Return Engine to Cooler

1шт.

5

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

O-Ring for Engine Fitting (Not Illustrated)

1шт.

6

84293558

TUBE

Suction Cooler to Splice

1шт.

6

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

O-Ring for Engine Fitting (Not Illustrated)

1шт.

7

84293559

LINE

1шт.

7

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

O-Ring for Engine Fitting (Not Illustrated)

1шт.

8

84293561

TUBE

1шт.

8

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

O-Ring for Engine Fitting (Not Illustrated)

1шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

11

84298475

HOSE CLAMP

5шт.

12

84371937

PLATE

Wrapper

1шт.

13

185926A1

SPACER,21mm x 40mm x 6.6mm Th

2шт.

14

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

15

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

15

86512496

FLANGE NUT,M20 x 2.5, Flg, Cl 8

Not Illustrated

4шт.

16

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

1шт.

17

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

Boron Washer

2шт.

18

84372873

FUEL TANK

42 gallon, plastic

1шт.

19

84293447

CAP,128.7mm D

1шт.

20

84287552

SENDER UNIT

Fuel Gauge Sender

1шт.

21

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

1шт.

22

83998666

CAP

1шт.

22

47681952

PLUG,Female

Replaced 83998666

1шт.

23

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

1шт.

24

84298489

COOLER ASSY.

Fuel

1шт.

25

47381142

PLATE

Cover, Power Tan

1шт.

26

84276394

PLATE

1шт.

27

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

28

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

29

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

30

414092A1

SEALING STRIP,100mm

1шт.
