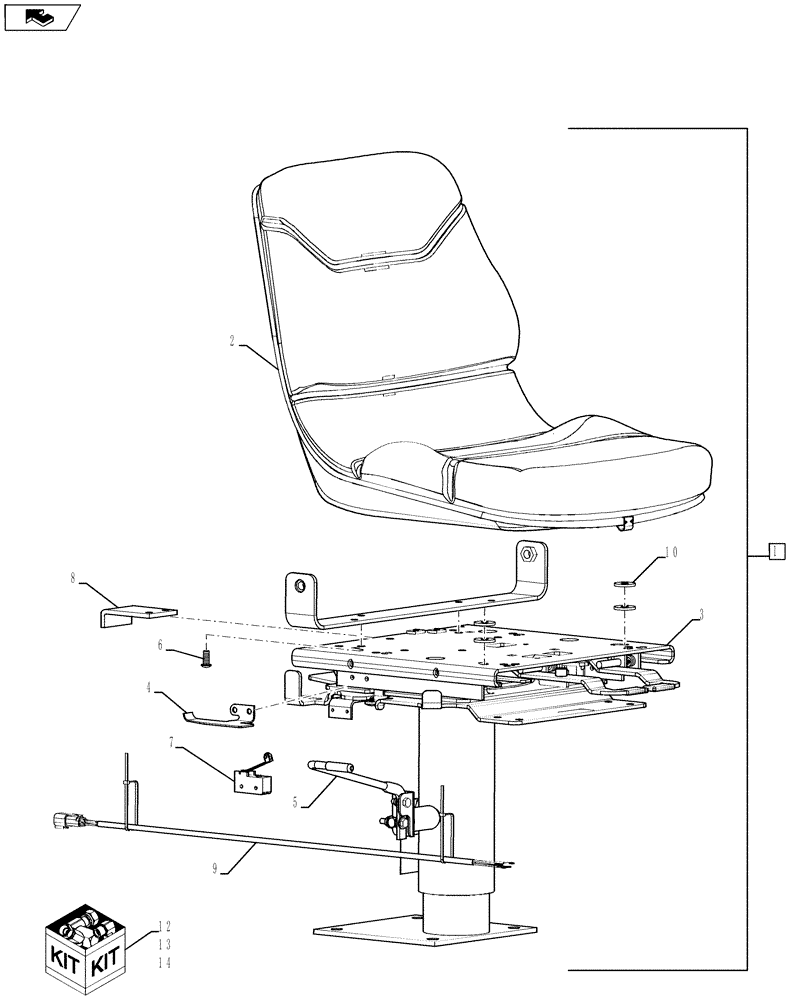

Запчасти Case 590SN (90.120.01[02]) - SEAT - ADJUSTABLE HEIGHT PEDESTAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84276092

SEAT ASSY.

1шт.

2

87338681

SEAT BACK

1шт.

3

87346606

SEAT ACCESSORY

Swivel and Pedestal

1шт.

4

87346607

SEAT ACCESSORY

Lever Switch Actuator

1шт.

5

87346611

SEAT ACCESSORY

Height Adjustment Handle

1шт.

6

87346612

SEAT ACCESSORY

bolt, 5/16 x 18UNC

4шт.

7

84276130

SEAT ACCESSORY

Switch and Harness

1шт.

8

84174986

BRACKET

1шт.

9

84276124

WIRE HARNESS

1шт.

10

84191654

WASHER

4шт.

11

87346615

SEAT ACCESSORY

Height Adjusment Handle (Not Shown)

1шт.

12

87308132

BEARING ASSY

Swivel Bearing (Not Shown)

1шт.

13

87346633

SEAT ACCESSORY

Pedestal

1шт.

14

87346634

SEAT ACCESSORY

Slide Swivel

1шт.
