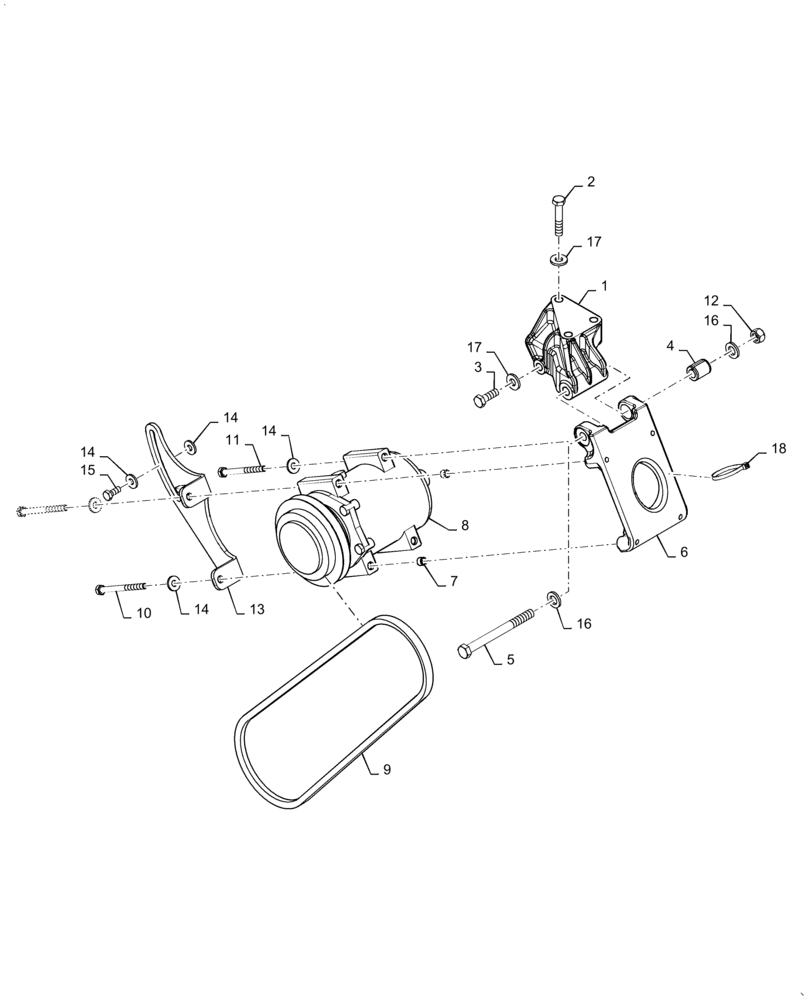

Запчасти Case 590SN (88.050.01[05]) - DIA KIT, A/C HPCR (88) - ACCESSORIES

.

84412149

SERVICE KIT

A/C HPCR, Incl 2 - 18

1шт.

See Ref. 88.050.01 [01] to 88.050.01 [04]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

1

87429950

SUPPORT

1шт.

2

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

3шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

4

87429951

SPACER,12.5mm ID x 22.4mm OD x 27mm L

1шт.

5

814-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

1шт.

6

87429948

SUPPORT

1шт.

7

87429952

SLEEVE,8.5mm ID x 11.132mm OD x 9mm L

2шт.

8

84159489

AIRCOND. COMPRESSOR,12V, W/ Clutch, W/ Pulley

1шт.

9

87393292

V-BELT,13.5 mm W x 1206.5mm L

36 degree, 47 1/2

1шт.

10

814-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

2шт.

11

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

12

829-1412

NUT,M12, Cl 10.9

1шт.

13

87429949

BRACKET, SUPPORTING

1шт.

14

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

17

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
