Запчасти Case 590SN (88.050.01[04]) - DIA KIT, A/C HPCR (88) - ACCESSORIES

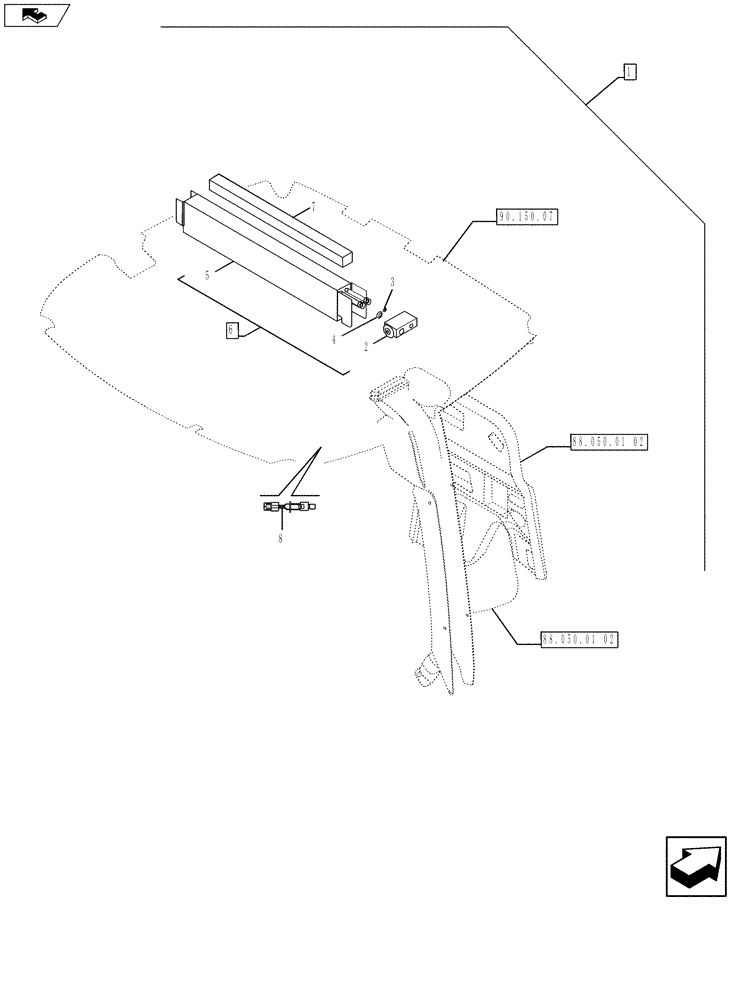

Схема запчастей Case 590SN - (88.050.01[04]) - DIA KIT, A/C HPCR (88) - ACCESSORIES
5
3
6
2
4
8
home
90.150.07
7
1
88.050.01 02
88.050.01 02

Артикул

Название

Примечание

Количество

1

84412149

SERVICE KIT

A/C HPCR, Incl 2 - 11, Serial Range: -`0

1шт.

See Ref. 88.050.01 [01] to 88.050.01 [03], 88.050.01 [05]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

386535A1

VALVE

1шт.

3

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

5

360263A4

EVAPORATOR

Core

1шт.

6

363832A5

EVAPORATOR

Incl Ref 2 - 5; Not Available as An Assembly; Order Components

1шт.

7

1987096C1

PLATE

1шт.

8

87000228

SWITCH, A/C LOW PRES

1шт.

9

83822C1

TAPE

Not Illustrated

3шт.

10

345-621

TAPE

Not Illustrated

2шт.

11

353-408

PLUG,Dome, .750" hole, Nylon

Not Illustrated

1шт.

Выбрано товаров: 13
