(88.035.13[02]) - DIA KIT, BI-AUX PR VALVE SECTION, PILOT CONTROLS

Запчасти Case 590SN (88.035.13[02]) - DIA KIT, BI-AUX PR VALVE SECTION, PILOT CONTROLS (88) - ACCESSORIES

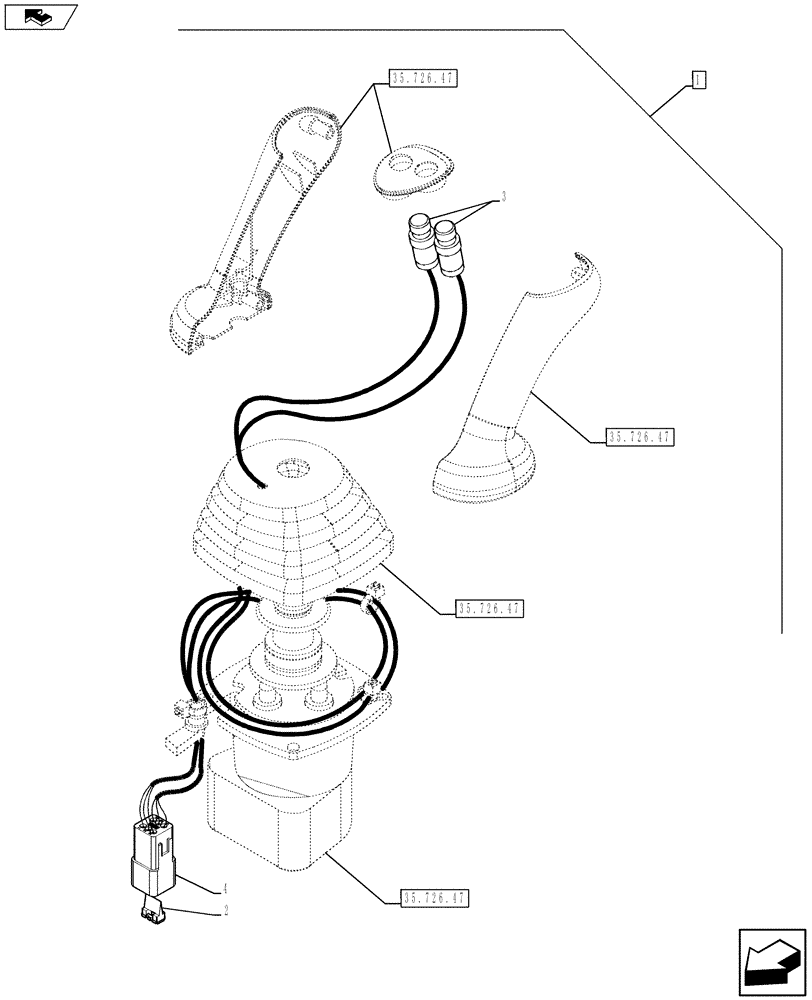

Схема запчастей Case 590SN - (88.035.13[02]) - DIA KIT, BI-AUX PR VALVE SECTION, PILOT CONTROLS (88) - ACCESSORIES
2
3
home
35.726.47
35.726.47
1
35.726.47
35.726.47
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87366503

HYDRAULIC VALVE

Bi-Aux Pr Valve Section, Pilot Controls, Incl 2 - 4, Serial Range: -`0

1шт.

See Ref. 88.035.13 [01]

1шт.

2

225353C1

WEDGE,Lock, Black

Type W6P, Connector

1шт.

3

87437371

SWITCH

2шт.

4

225350C1

ELEC CONNECTOR,Male, 6 Pin

1шт.
