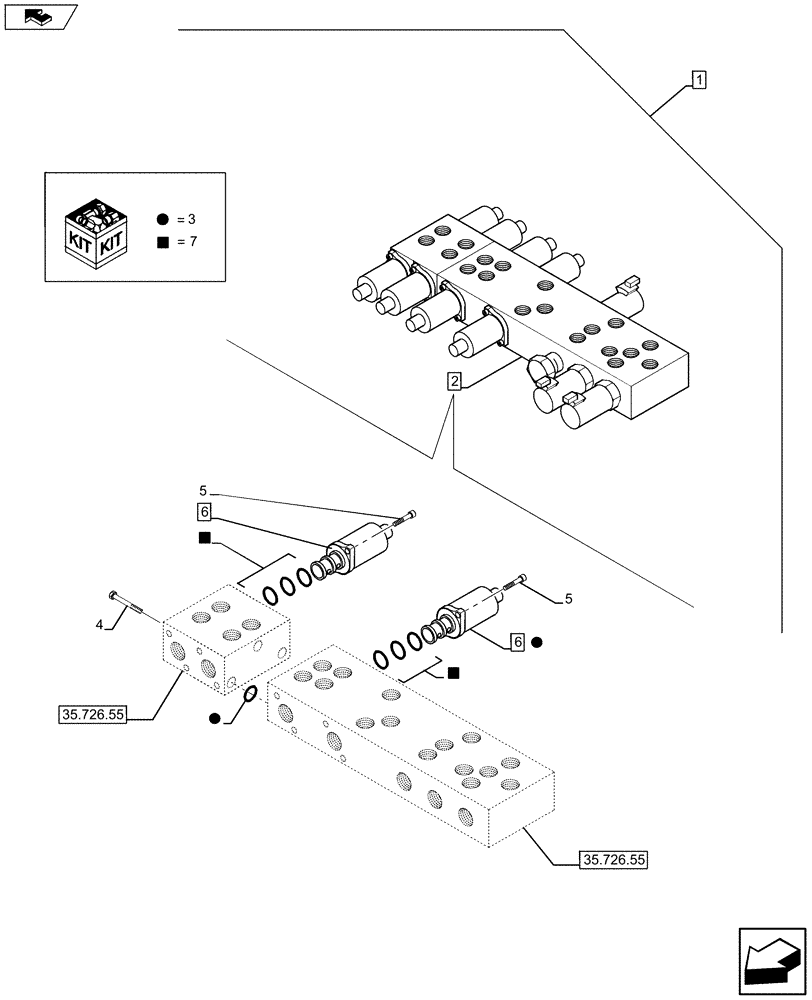

Запчасти Case 590SN (88.035.13[01]) - DIA KIT, BI-AUX PR VALVE SECTION, PILOT CONTROLS (88) - ACCESSORIES

1

87366503

HYDRAULIC VALVE

Bi-Aux Pr Valve Section, Pilot Controls, Incl 2 - 7, Serial Range: -`0

1шт.

See Ref. 88.035.13 [02]

1шт.

2

87434621

CONTROL VALVE

Assy, Incl 3 - 7

1шт.

3

85827999

SEAL KIT

1шт.

4

85828061

SCREW,M5 x 80mm

M5x80

3шт.

5

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

16шт.

6

85827993

SOLENOID VALVE

Assy, Incl 7

8шт.

RH/LH Stab. Retract PWM, RH/LH Stab. Extend PWM & Extendahoe Retract/Extend PWM, Bi-Dir Aux A/B Port PWM

1шт.

7

85828000

SEAL KIT

8шт.
