Запчасти Case 590SN (55.514.01) - LAMPS - ROPS CAB (55) - ELECTRICAL SYSTEMS

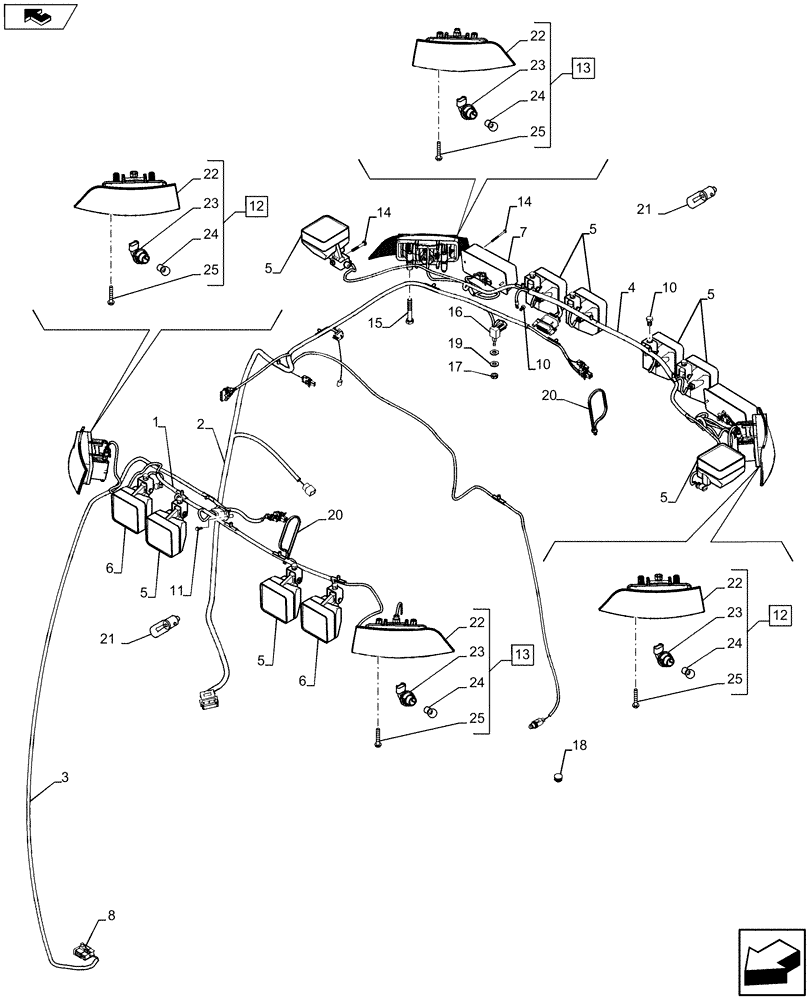

Схема запчастей Case 590SN - (55.514.01) - LAMPS - ROPS CAB (55) - ELECTRICAL SYSTEMS
6
12
21
5
21
22
25
14
13
5
12
1
13
25
18
8
2
17
5
23
25
20
24
22
24
22
14
25
5
23
3
22
15
5
4
6
23
5
20
24
10
home
23
10
19
16
7
11
24

Артикул

Название

Примечание

Количество

1

84292406

HARNESS

Front Lights, Driving and Work

1шт.

2

84292408

HARNESS

B-post With Wiper

1шт.

3

84292405

HARNESS

A-post with Wiper

1шт.

4

84292407

HARNESS

Rear Lights

1шт.

5

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

For Replacement Bulb see Ref 21

8шт.

5

47682620

WORK LAMP,Flood, LED, 12V

LAMP, WORK, LED

8шт.

6

84236850

LIGHT,Halogen, 12V, 55W, Clear

For Replacement Bulb see Ref 21

2шт.

6

47682629

WORK LAMP

LAMP, WORK, LED

2шт.

7

92260C1

LAMP,12V, 27W, Red

2шт.

8

87707841

CLIP,Hole DIA 6.35mm

1шт.

9

864-10014

HEX SOC SCREW,M10 x 14mm, Cl 8.8

2шт.

10

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

10шт.

11

280-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

12

87301973

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

Assy, Incl 22 - 25

2шт.

13

87301972

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

Assy, Incl 22 - 25

2шт.

14

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

4шт.

15

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

8шт.

16

A187714

PUSH BUTTON SWITCH

1шт.

17

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

18

382298A1

PLUG

2шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

21

1312210C2

BULB,Halogen H3, 12V, 55W

1шт.

22

NSS

NOT SOLD SEPARAT

Lamp Housing, Incl in 12 or 13

1шт.

23

87304554

HOLDER

1шт.

24

529068

BULB,#1156, 12V, 21W

1шт.

25

84187820

SCREW,Torx Pan Hd, M6 x 35mm, Cl 8.8

1шт.

279265A2

SWITCH

Dome Light (Not Shown)

1шт.

Выбрано товаров: 28
