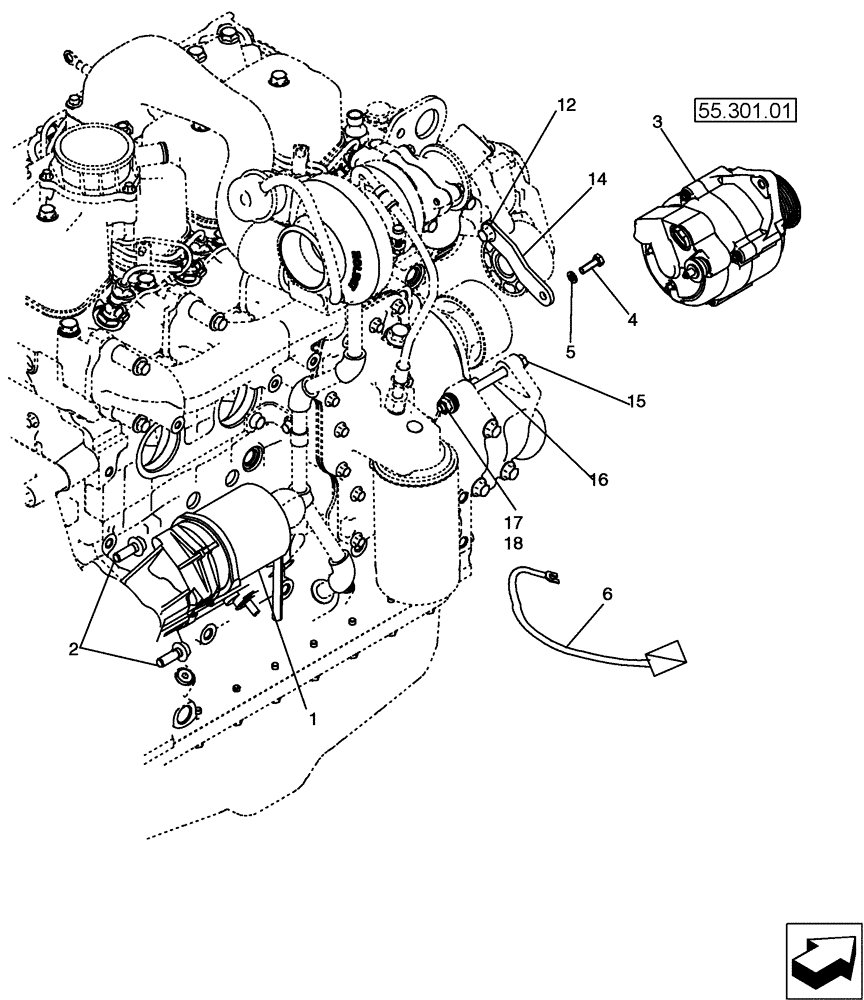

Запчасти Case 590SN (55.201.09) - STARTER / ALTERNATOR MOUNTING (55) - ELECTRICAL SYSTEMS

1

86992395

STARTER MOTOR,12V, 2.7kW

1шт.

1

86992395R

REMAN-STARTER,12V, 2.7kW

580SN 58SN01, 580SN WT, 590SN, All Tier 3

1шт.

1

86992395C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

86992395GV

STARTER MOTOR,12V, 2.7kW

1шт.

2

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

3

84254289

ALTERNATOR,12V, 120A, W/ Pulley

Mounting Hardware Included With 87584965 Engine Assembly; See Ref. 12, 14, 16

1шт.

3

84254289R

REMAN-ALTERNATOR

580N, 580SN, 590SN, 580SN WT All (TIER 3)

1шт.

3

84254289C

CORE-ALTERNATOR

Return Number

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

892-11008

LOCK WASHER,8mm ID

1шт.

6

87433401

ELECTRIC CABLE

Starter Solenoid Jumper

1шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Included With 87584965 Engine Assy

1шт.

14

84228475

SECURING STRAP

Included With 87584965 Engine Assy

1шт.

15

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

16

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

Included With 87584965 Engine Assy

1шт.

17

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
