Запчасти Case 590SN (55.100.06) - HARNESS, INSTALL - ENGINE (580SN, 580SN WT, 590SN) (55) - ELECTRICAL SYSTEMS

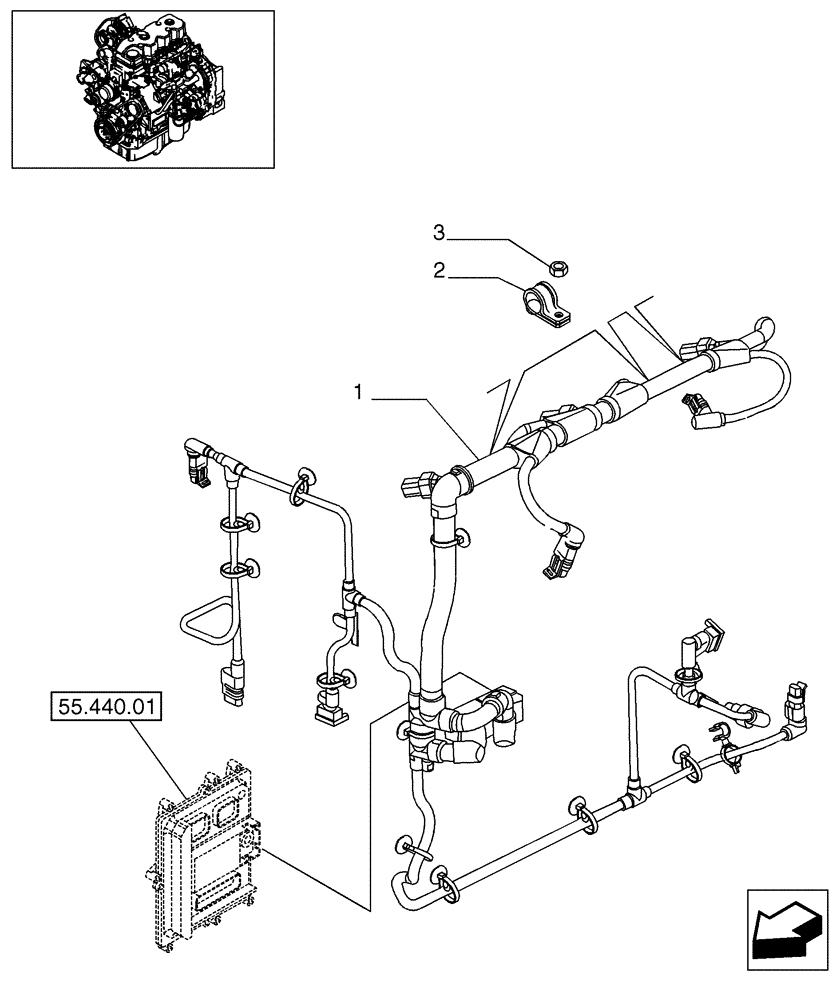

Схема запчастей Case 590SN - (55.100.06) - HARNESS, INSTALL - ENGINE (580SN, 580SN WT, 590SN) (55) - ELECTRICAL SYSTEMS
2
1
2
3
55.440.01

Артикул

Название

Примечание

Количество

1

2855886

WIRE HARNESS

1шт.

2

4899815

CLAMP,20mm, Insul, 7mm Bolt

2шт.

2

2852500

CLAMP

1шт.

3

2852484

FLANGE NUT,Hex, M6 x 1

M6

3шт.

82033028

CABLE TIE,170mm L

Cable Tie W/ Fir tree, L = 170mm [made for 6.3/7.0mm hole]

1шт.

87567355

CLAMP,202mm L x 4.6mm W x 1.2mm Thk

Cable Tie W/ Fir tree, L = 202mm [ made for 6.5mm hole size]

1шт.

87567356

CLAMP,200mm L x 4.6mm W x 1.2mm Thk

Cable Tie W/ Fir tree, L = 200mm [made for 10.0mm hole size]

1шт.

Выбрано товаров: 7
