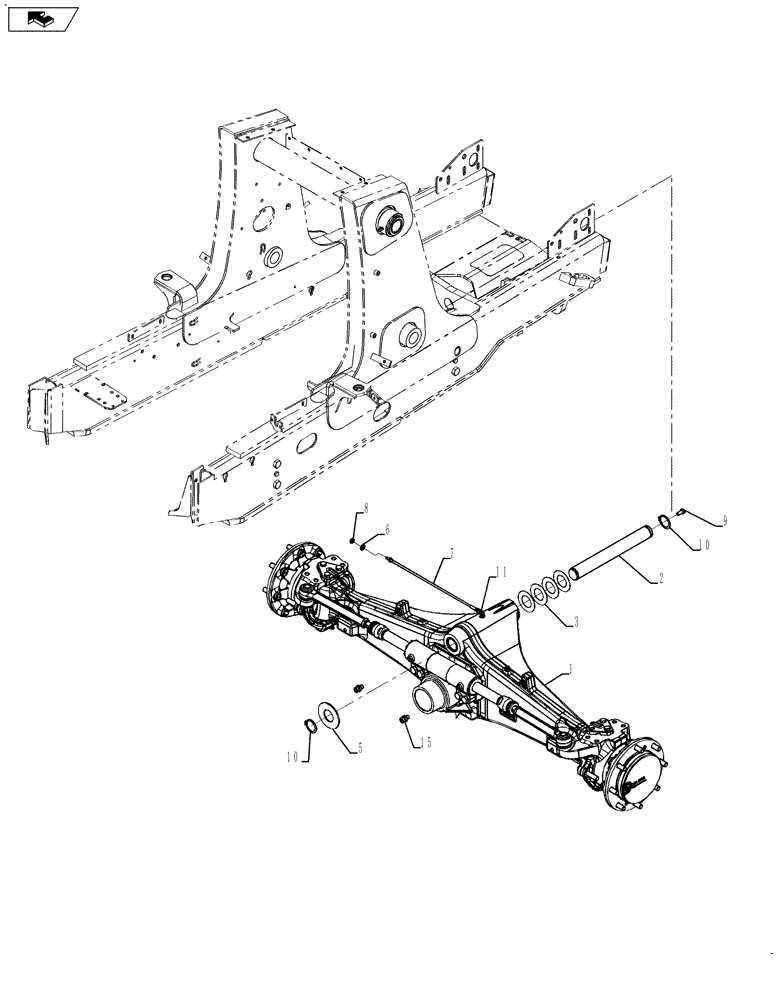

Запчасти Case 590SN (44.100.15[02]) - AXLE, FRONT - MOUNTING (590SN) (44) - WHEELS

1

84221138

STEERING AXLE

HD ACP 2WD

1шт.

1

84221138R

REMAN-FRONT AXLE

1шт.

1

84221138C

CORE-FRONT AXLE 4WD

1шт.

2

87404197

PIVOT PIN,50mm OD x 426.5mm L

1шт.

3

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

4шт.

4

9992342

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

5

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

1шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

7

87572760

HOSE ASSY.,6.4mm ID x 533mm L

1шт.

8

F53473

LOCK NUT,1/8-27 NPSM

1шт.

9

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

10

800-44050

SNAP RING,M50, Ext

2шт.

11

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

1шт.
