(39.121.09) - BACKHOE - DIPPER, STANDARD WITH HYDRAULIC COUPLER(590SN)

Запчасти Case 590SN (39.121.09) - BACKHOE - DIPPER, STANDARD WITH HYDRAULIC COUPLER(590SN) (39) - FRAMES AND BALLASTING

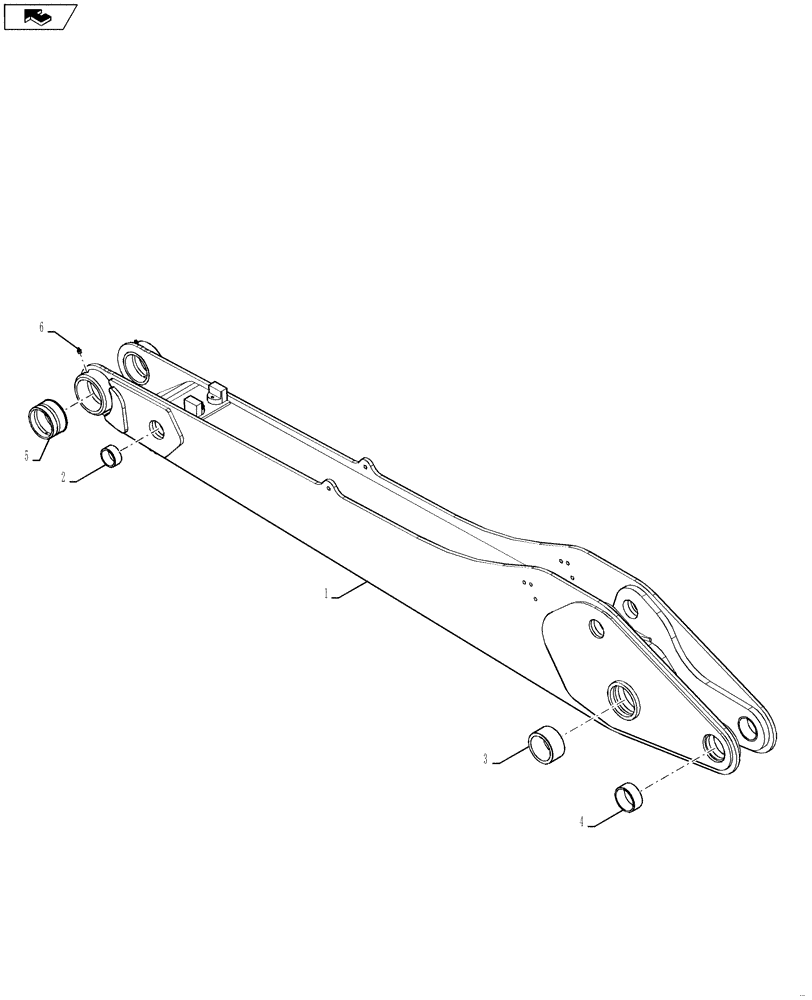

Схема запчастей Case 590SN - (39.121.09) - BACKHOE - DIPPER, STANDARD WITH HYDRAULIC COUPLER(590SN) (39) - FRAMES AND BALLASTING
1
3
home
5
2
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84246688

DIPPER

Inc. 2-6

1шт.

2

84169285

BUSHING,50.20mm ID x 59.98mm OD x 27mm L

2шт.

3

84234854

BUSHING,80.19mm ID x 99.98mm OD x 50mm L

2шт.

4

84229926

BUSHING,70.19mm ID x 79.98mm OD x 34mm L

2шт.

5

84246711

BUSHING,89.13mm ID x 101.73mm OD x 56mm L

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
