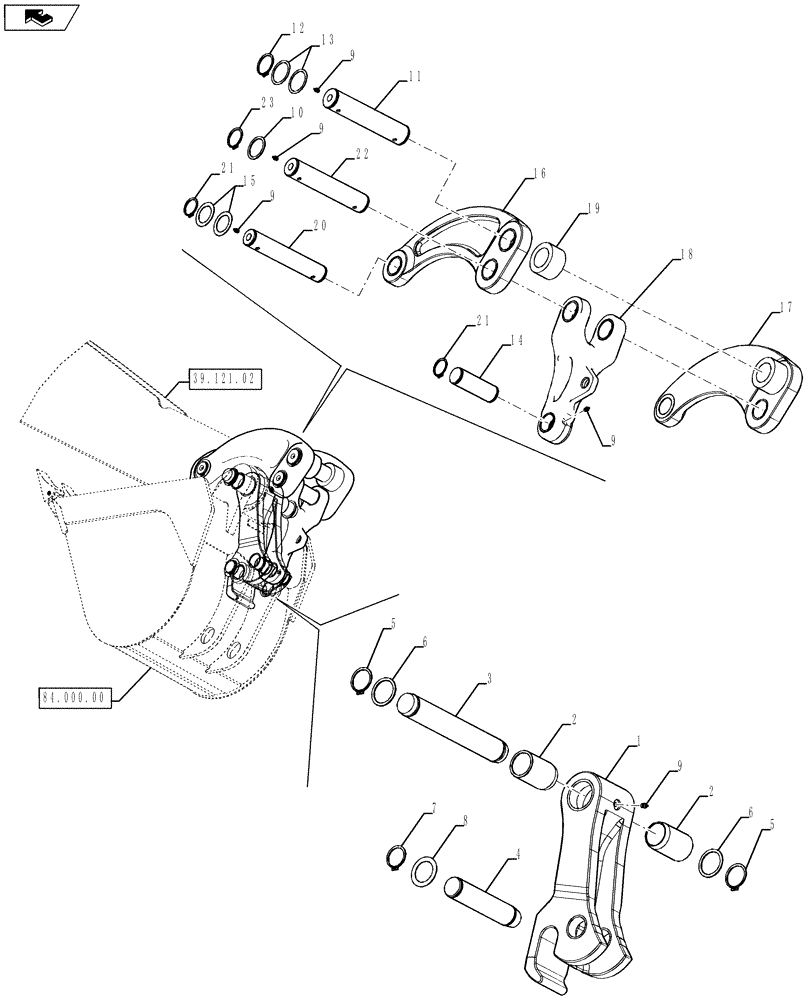

Запчасти Case 590SN (39.121.04) - BACKHOE - COUPLER AND BUCKET PINS (590SN) (39) - FRAMES AND BALLASTING

1

84229978

LINK ASSY.

Inc. Ref 24 and 25

1шт.

2

84224880

BUSHING,55.28mm ID x 67.53mm OD x 104mm L

2шт.

3

84223654

PIN,55mm OD x 372.6mm L

Bucket to Dipper

1шт.

3

84409739

PIN,55mm OD x 340.8mm L

12" Bucket Only, Bucket to Dipper

1шт.

4

84223653

PIN,50mm OD x 246.1mm L

Bucket

1шт.

5

84233536

RING,55mm ID, Ext

2шт.

6

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

7

87016943

RING, SNAP,50mm ID , Ext

RING SNAP

2шт.

8

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

7шт.

10

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

12шт.

11

84171217

PIN,60mm OD x 294.78mm L

Backhoe Link

1шт.

12

84224886

RING,60mm ID, Ext

2шт.

13

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

4шт.

14

84231817

PIN,55mm OD x 151mm L

Bucket Cylinder to Dipper

1шт.

15

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

4шт.

16

84230435

LINK ASSY.

1шт.

17

84230436

LINK ASSY.

1шт.

18

84303420

LINK ASSY.

1шт.

19

84170641

SPACER,60.19mm ID x 94.7mm OD x 52mm L

2шт.

20

84171343

PIN,50mm OD x 291.76mm L

Backhoe Link

1шт.

21

84233536

RING,55mm ID, Ext

2шт.

22

84171217

PIN,60mm OD x 294.78mm L

Backhoe Link

1шт.

23

84224886

RING,60mm ID, Ext

2шт.

24

84229923

BUSHING,55.19mm ID x 64.98mm OD x 29mm L

55 x 5 x 29 (Not Shown) Used on Ref 1

2шт.

25

84227023

BUSHING,67.75mm ID x 79.98mm OD x 30mm L

80 x 6 x 30 (Not Shown) Used on Ref 1

2шт.
