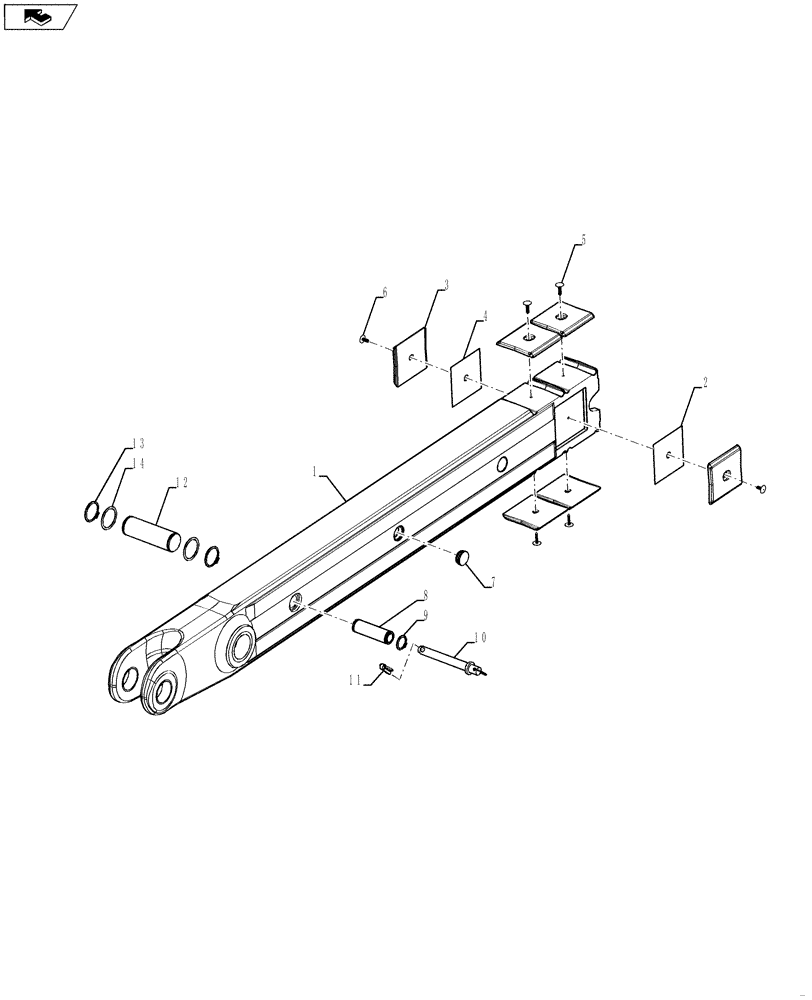

Запчасти Case 590SN (39.121.02[02]) - BACKHOE - DIPPER, EXTENDABLE (INNER) (590SN) (39) - FRAMES AND BALLASTING

1

84298779

DIPPER

15 Foot

1шт.

2

132844A1

SHIM,19mm ID x 142mm OD x 0.8mm Thk

1шт.

3

451384A1

WEAR PLATE

6шт.

4

132842A1

SHIM,19mm ID x 142mm OD x 1.6mm Thk

1шт.

5

183443A1

PIN,6.6mm OD x 38.5mm L

4шт.

6

183509A1

PIN,8.3mm OD x 22mm L

2шт.

7

D133865

PLUG

4шт.

8

300588A1

PIN,40mm OD x 136mm L

1шт.

9

800-44040

SNAP RING,M40, Ext

2шт.

10

D140247

LOCK PIN,25.4mm OD x 232.6mm L

1шт.

11

A33509

PIN,11.18mm OD

1шт.

12

84225660

PIN,59.9mm OD x 186mm L

1шт.

13

84224886

RING,60mm ID, Ext

2шт.

14

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

2шт.
