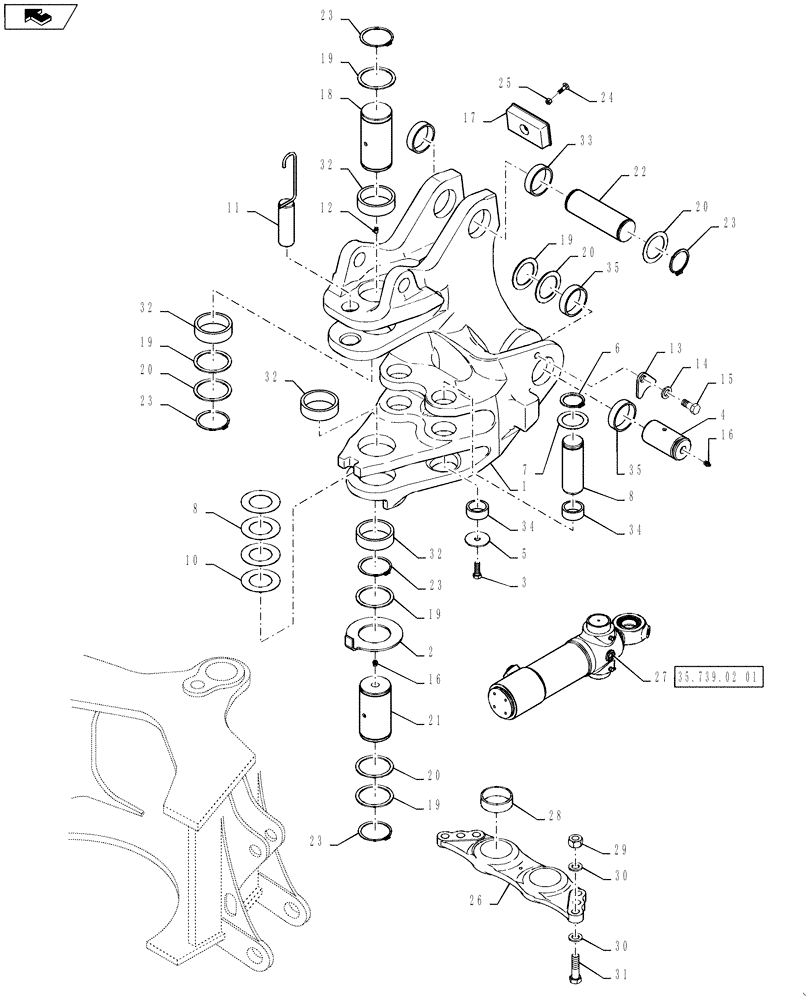

Запчасти Case 590SN (39.105.09[01]) - BACKHOE - SWING TOWER AND SWING CYLINDERS (590SN) (39) - FRAMES AND BALLASTING

1

84304072

TOWER

1шт.

2

84246814

SPECIAL WASHER,82mm ID x 144mm OD x 1.10mm Thk

1шт.

3

86566268

LOCK BOLT,Prev Torque, Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

4

84230831

PIN,80mm OD x 115mm L

Boom to Tower

2шт.

5

84265979

SPECIAL WASHER,13mm ID x 60mm OD x 3mm Thk

2шт.

6

103-16200

SNAP RING,#200, Ext

2шт.

7

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

2шт.

8

84261887

PIN,50.77mm OD x 146.7mm L

Swing Cylinder Eye

2шт.

9

84261890

SHIM,82mm ID x 140mm OD x 2mm Thk

2шт.

10

84261891

SHIM,82mm ID x 140mm OD x 3mm Thk

2шт.

11

84249358

PIN

Swing Lock

1шт.

12

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

13

84246323

RETAINER,18mm ID

2шт.

14

NS

NOT SERVICED

Washer

2шт.

15

84246776

PREV TORQUE BOLT,Hex, M16 x 35mm, Cl 10.9

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

17

84245639

BUMPER

1шт.

18

84246817

PIN,79.9mm OD x 192mm L

Bucket Cylinder to Dipper

1шт.

19

D144485

SHIM,82mm ID x 98mm OD x 3.05mm Thk

5шт.

20

D144486

SHIM,82mm ID x 98mm OD x 1.57mm Thk

6шт.

21

84246816

PIN,75.7mm Dia x 173mm L

Tower Lower

1шт.

22

84247078

PIN,80mm Dia x 162.5mm L

Boom Cylinder to Tower

1шт.

23

800-40080

SNAP RING,M80, Ext

6шт.

24

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

1шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

26

84336208

BEAM

1шт.

27

139808A2

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 292mm Stroke

2шт.

27

139808A2R

REMAN-HYD CYLINDER

2шт.

27

139808A2C

CORE-HYD CYLINDER

Return Number

2шт.

28

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

80

2шт.

29

829-1420

NUT,M20, Cl 10

6шт.

30

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

12шт.

31

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

6шт.

32

84235607

BUSHING,80mm ID x 96mm OD x 30mm L

4шт.

33

84237677

BUSHING,80mm ID x 100mm OD x 36mm L

2шт.

34

135249A1

BUSHING,50.96mm ID x 63.5mm OD x 28.6mm L

4шт.

35

84326989

BUSHING,90mm OD x 80mm ID x 24mm L

4шт.
