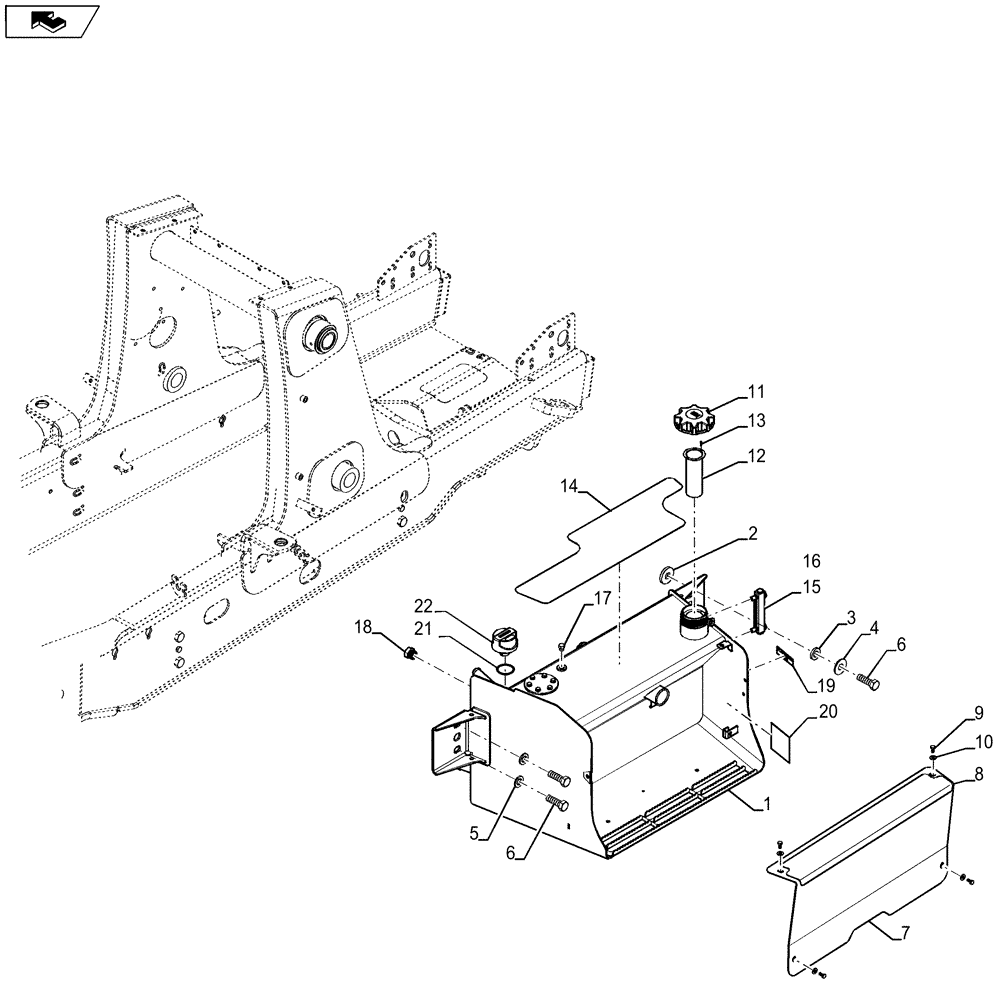

Запчасти Case 590SN (35.750.01) - HYDRAULICS - TANK (35) - HYDRAULIC SYSTEMS

1

84323511

RESERVOIR, HYDRAULIC

1шт.

2

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

1шт.

3

185926A1

SPACER,21mm x 40mm x 6.6mm Th

2шт.

4

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

5

NS

NOT SERVICED

2шт.

6

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

6

86512496

FLANGE NUT,M20 x 2.5, Flg, Cl 8

Not Shown

4шт.

7

84281665

COVER

Battery

1шт.

8

87719444

ANTI-SKID STRIP

1шт.

9

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

11

84298013

CAP,128.8mm D

1шт.

12

230857A1

FILTER SCREEN

1шт.

13

NS

NOT SERVICED

2шт.

14

84295099

ANTI-SKID STRIP

1шт.

15

226456A1

LEVEL GAUGE

1шт.

16

345-49

SEALANT

1шт.

17

218-5155

PLUG,9/16" - 18 ORB

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

19

321-229

DECAL

1шт.

20

87673270

ADHESIVE STRIP

1шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

84329587

BREATHER

Assy, Incl 21

1шт.

23

87666894

COVER

Top of tank (Not Shown)

1шт.

24

87666896

GASKET,110mm OD, 50mm ID, 18mm ID

Top of tank (Not Shown)

1шт.
