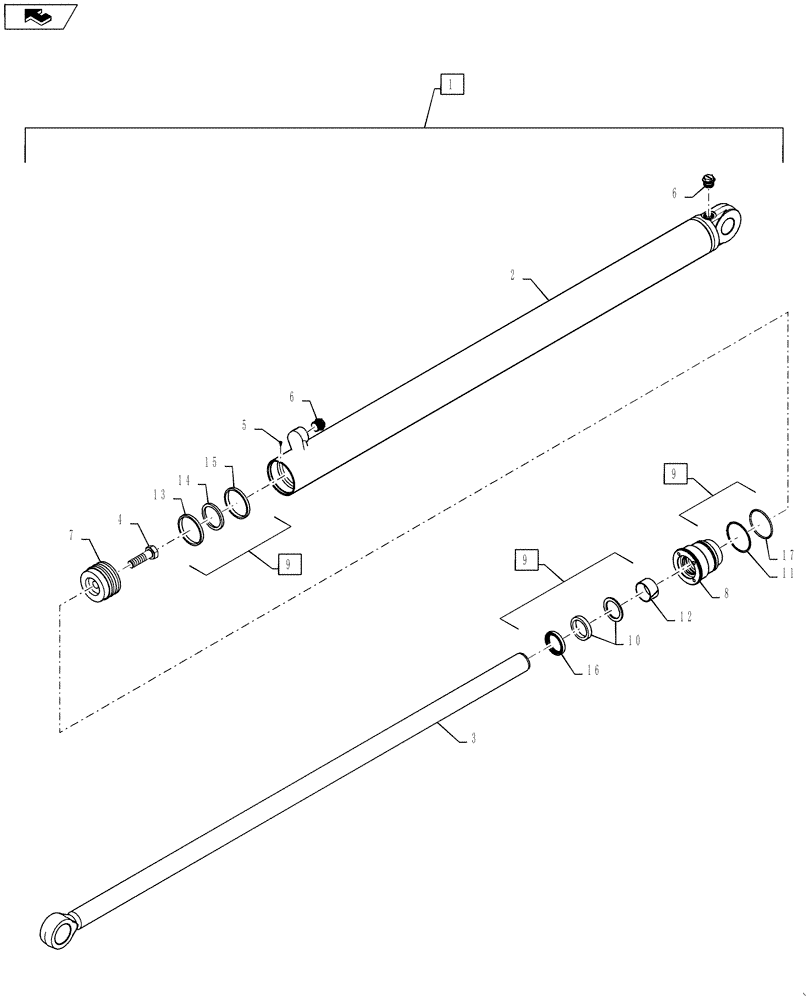

Запчасти Case 590SN (35.740.02[03]) - CYLINDER - BACKHOE EXTENDABLE DIPPER (590SN) (35) - HYDRAULIC SYSTEMS

1

84182292

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1220mm Stroke

Incl 2 - 17

1шт.

2

84182377

TUBE,76mm Bore Dia

1шт.

3

84182379

ROD,44.4mm OD x 1550.7mm L

1шт.

4

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

7

G107277

PISTON

1шт.

8

297281A1

GLAND

1шт.

9

86982377

SEAL KIT

Incl 10 - 17

1шт.

10

1542875C1

SEAL KIT,44.4mm Rod

Rod & Buffer Seal

1шт.

11

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

Backup

1шт.

12

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

Rod Bearing

1шт.

13

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

Loader Ring

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

16

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Rod Wiper

1шт.

17

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.
