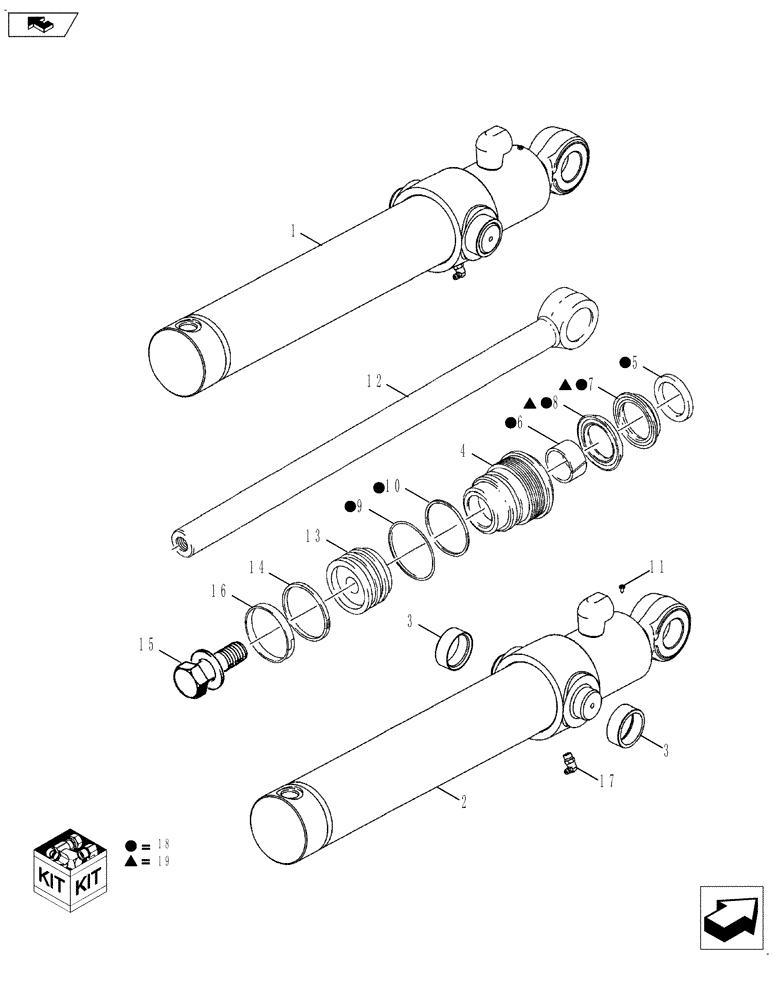

Запчасти Case 590SN (35.738.01[03]) - CYLINDER - LOADER BUCKET (590SN) (35) - HYDRAULIC SYSTEMS

1

84210944

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 516.5mm Stroke

76 ID x 522 mm strk; Loader Bucket; Inc 2- 17

1шт.

2

84208503

TUBE,82.8mm Bore Dia

Inc 3

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

2шт.

4

84208516

GLAND

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Wiper

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL Rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL Buffer

1шт.

9

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

11

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

84208508

ROD,44.5mm OD x 727mm L

1шт.

13

84208518

PISTON ROD/GLAND,82.07mm Bore, 44.55mm Rod, 75.95mm W

1шт.

14

87715782

SEAL,82.6mm OD

1шт.

15

86982438

SPECIAL BOLT,Hex, 14, 1 x 3"

3/4 x 2.5 in, Includes Washer

1шт.

16

S109445

RING,82.55mm OD, Ext

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

18

84257323

SEAL KIT,44.4mm Rod x 82.6mm Bore

Incl Ref 5, 6, 9, 10, 14, 16, 19

1шт.

19

1542875C1

SEAL KIT,44.4mm Rod

Rod and Buffer; Inc 7, 8

1шт.
