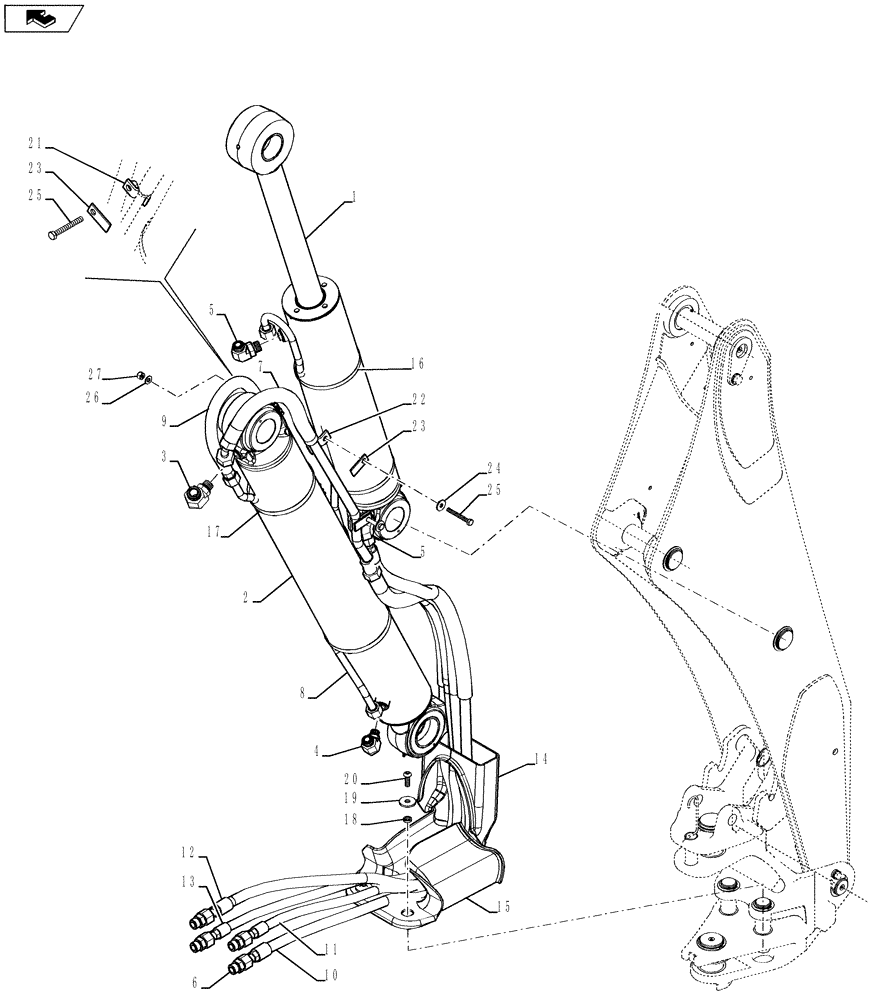

Запчасти Case 590SN (35.737.01[03]) - HYDRAULICS - BOOM INSTALL (590SN) (35) - HYDRAULIC SYSTEMS

1

84302994

HYDRAULIC CYLINDER,69.9mm Rod, 597.7mm Stroke

Dipper

1шт.

1

84302994R

REMAN-HYD CYLINDER

580SM, 580SM+, Both SERIES 3 (2/08-), 590SN, All LOADER BACKHOE TIER 3, Dipper

1шт.

1

84302994C

CORE-HYD CYLINDER

Return Number

1шт.

2

84210930

CYLINDER,Double Acting, 69.9mm Rod, 1030.5mm Stroke

Boom

1шт.

3

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

1шт.

4

87656136

HYD CONNECTOR

1шт.

5

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

2шт.

5

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Side For Ref 5 & 6

2шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Side For Ref 5 & 6

2шт.

6

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

4шт.

7

84276922

HYD TUBE

Boom Cylinder Head End

1шт.

8

84276920

HYD TUBE

Boom Cylinder Rod End

1шт.

9

84276924

HYD TUBE

Boom Cylinder Rod End

1шт.

10

84281984

HYDRAULIC HOSE,19mm ID x 2268mm L

Dipper Cylinder Head End; Green

1шт.

11

84323406

HYD TUBE

Dipper Cylinder Rod End; Blue

1шт.

12

84281986

HYDRAULIC HOSE,19mm ID x 2262mm L

Boom Cylinder Head End; Orange

1шт.

13

84263823

HYDRAULIC HOSE,16mm ID x 2247mm L

Boom Cylinder Rod End; Yellow

1шт.

14

84303527

GUARD

1шт.

15

84303525

GUARD

1шт.

16

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

2шт.

17

214-31112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm

2шт.

18

84286039

SPACER,13.87mm ID x 21.34mm OD x 5.4mm Thk

2шт.

19

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

20

84299393

HEX SOC SCREW,Hex Socket Button Head, M12 x 1.75 x 35mm, Cl. 10.9

2шт.

21

84367726

CLAMP,3/4" Clamping tube

2шт.

22

242459A1

SHIN

2шт.

23

84259030

SPACER

4шт.

24

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

25

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

4шт.

26

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

27

412141

NUT,M10 x 1.5, Cl 8

4шт.
