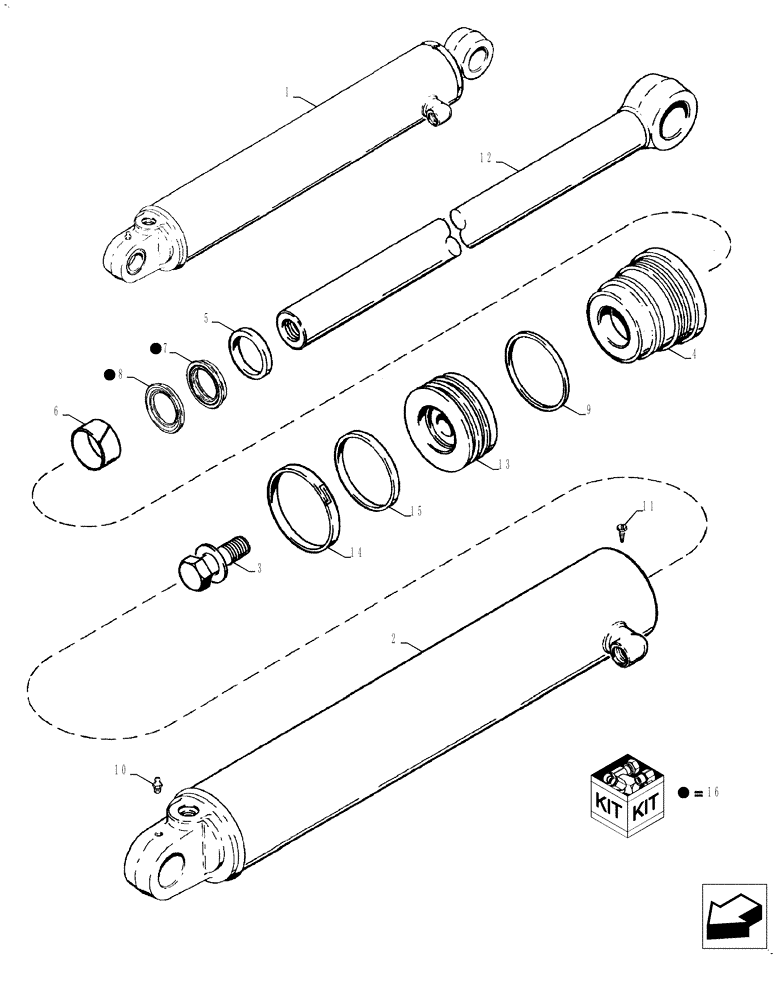

Запчасти Case 590SN (35.732.01[06]) - CYLINDER - BACKHOE STABILIZER (580SN) (35) - HYDRAULIC SYSTEMS

1

84210938

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 542.9mm Stroke

Left Hand

1шт.

1

84210938R

REMAN-HYD CYLINDER

Left Hand

1шт.

1

84210938C

CORE-HYD CYLINDER

Return Number

1шт.

1

84210947

HYDRAULIC CYLINDER,57.2mm Rod, 542.9mm Stroke

Right Hand

1шт.

1

84210947R

REMAN-HYD CYLINDER

Right Hand

1шт.

1

84210947C

CORE-HYD CYLINDER

Return Number

1шт.

2

84222823

HYD TUBE

LH Tube

1шт.

2

84222151

HYD TUBE,114.3mm Bore Dia

RH Tube

1шт.

3

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

1шт.

4

84238794

GLAND

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

6

1346476C1

RING,57.15mm ID, Int

1шт.

7

NSS

NOT SOLD SEPARAT

114.3 Bore, 57.2 Rod (Order Kit 1542877C1)

1шт.

8

NSS

NOT SOLD SEPARAT

114.3 Bore, 57.2 Rod (Order Kit 1542877C1)

1шт.

9

87615484

SEAL,108.43mm ID x 113.93mm OD x 5.41mm Thk

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

11

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

84222154

ROD,57.2mm OD x 771.4mm L

1шт.

13

84228260

PISTON ROD/GLAND,113.64mm Bore, 57.25mm Rod, 56.45mm W

1шт.

14

G101996

WEAR RING,4.5" OD x 0.75" Thk

1шт.

15

87715787

SEAL,114.3mm OD

1шт.

16

1542877C1

SEAL KIT,57.2mm Rod

1шт.

17

84259227

SEAL KIT,57.2mm Rod x 114.3mm Bore

Complete (Not Shown)

1шт.
