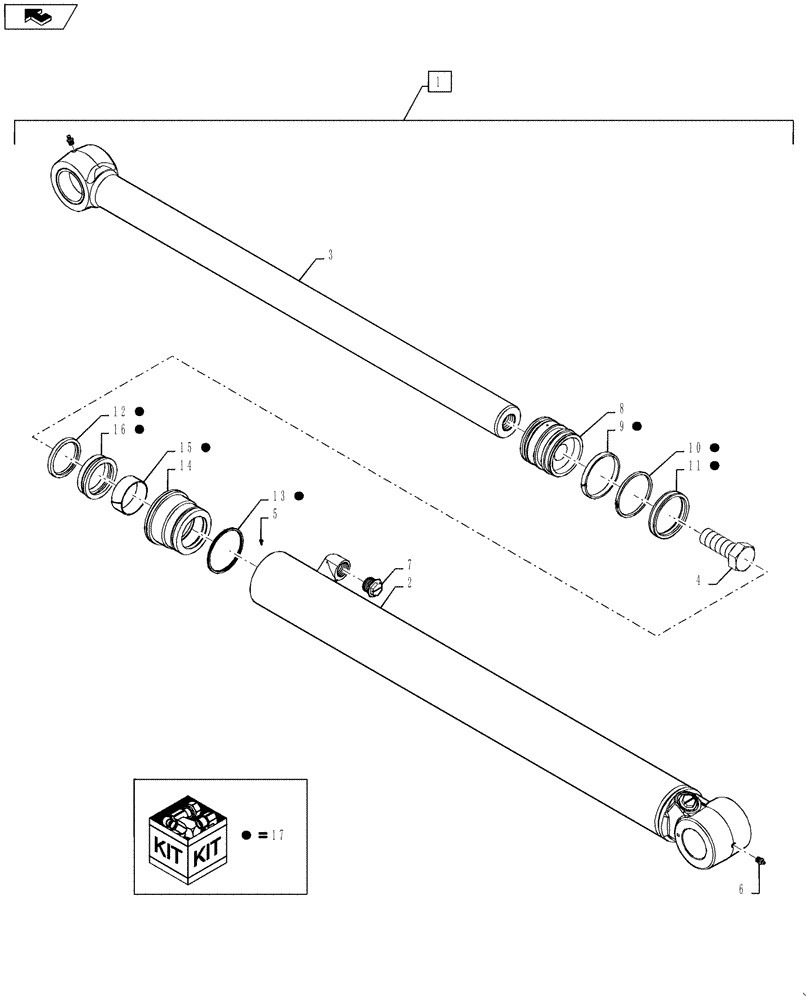

Запчасти Case 590SN (35.730.03[03]) - CYLINDER - BACKHOE BOOM (590SN) (35) - HYDRAULIC SYSTEMS

1

84210930

CYLINDER,Double Acting, 69.9mm Rod, 1030.5mm Stroke

1шт.

2

84205603

BARREL,139.63mm Bore Dia

1шт.

3

84233180

ROD,69.9mm OD x 1358.33mm L

1шт.

4

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

1шт.

8

84233187

PISTON ROD/GLAND

1шт.

9

1980266C1

SEALING RING,133.4mm ID x 139.7mm OD x 18.9mm Thk

1шт.

10

140968A1

RING,134.22mm ID, Ext

1шт.

11

87715791

SEAL,139.7mm OD

4 Piece Piston

1шт.

12

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

1шт.

13

87615487

SEAL

1шт.

14

84233185

GLAND,145.58mm Bore, 70.21mm Rod, 86.6mm W

1шт.

15

G102428

BEARING,2.75mm ID x 69.85mm OD x 37.85 W

1шт.

16

1542880C1

PACKAGE

1шт.

17

84259220

SEAL KIT,69.9mm Rod x 139.7mm Bore

Incl. Ref 9, 10, 11, 12, 13, 15, 16

1шт.

18

353-782

PLUG,Slotted, 1 1/16"-12

(Not Shown)

1шт.
