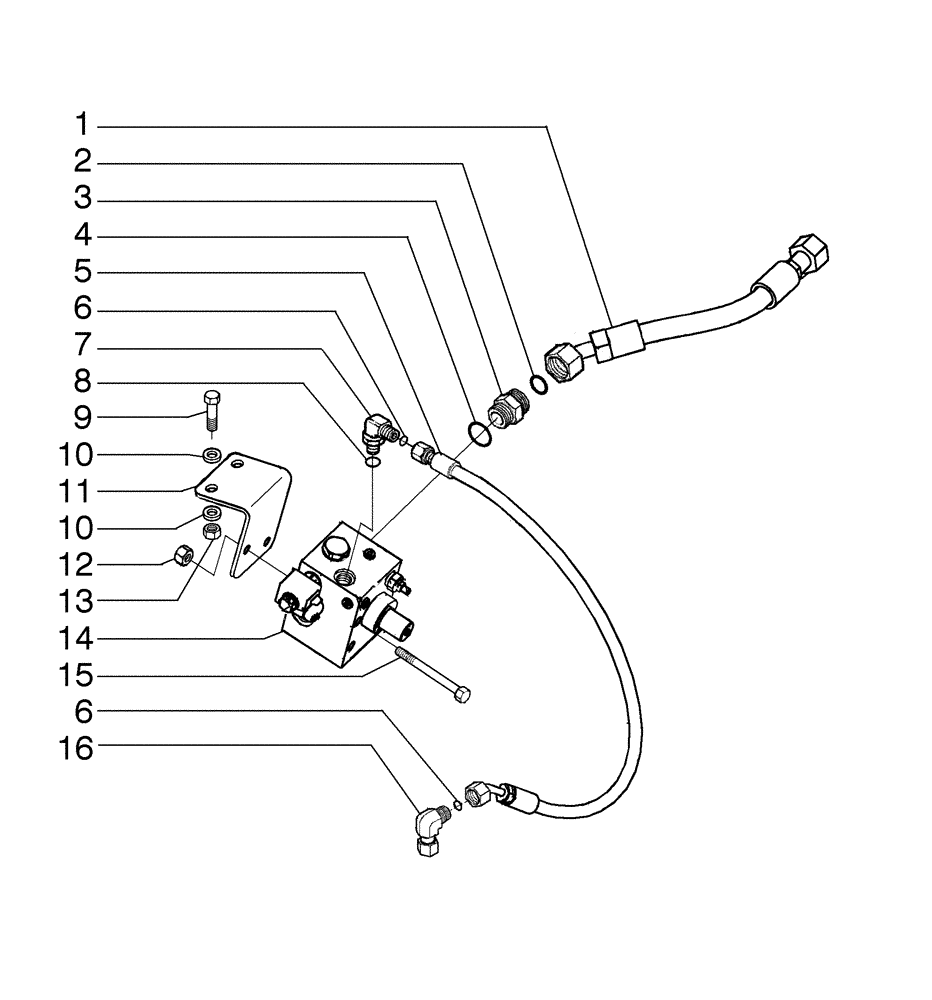

Запчасти Case 590SN (35.726.38[01]) - VALVE INSTALL - HAMMER (WITH MECHANICAL CONTROLS) (35) - HYDRAULIC SYSTEMS

1

84283270

HOSE ASSY.,19mm ID x 415mm L

1шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

3

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

5

84514723

HOSE ASSY.,10mm ID x 1035mm L

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

7

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

10

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

11

84257782

BRACKET

1шт.

12

43362

NUT,M8 x 1.25, Cl 10

2шт.

13

337475

NUT,M12, Cl 10

2шт.

14

84247109

VALVE

1шт.

15

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

16

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.
