(35.726.28[03]) - VALVE - HEAVY LIFT (MECHANICAL CONTROL) (580SN, 580SN WT, 590SN)

Запчасти Case 590SN (35.726.28[03]) - VALVE - HEAVY LIFT (MECHANICAL CONTROL) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

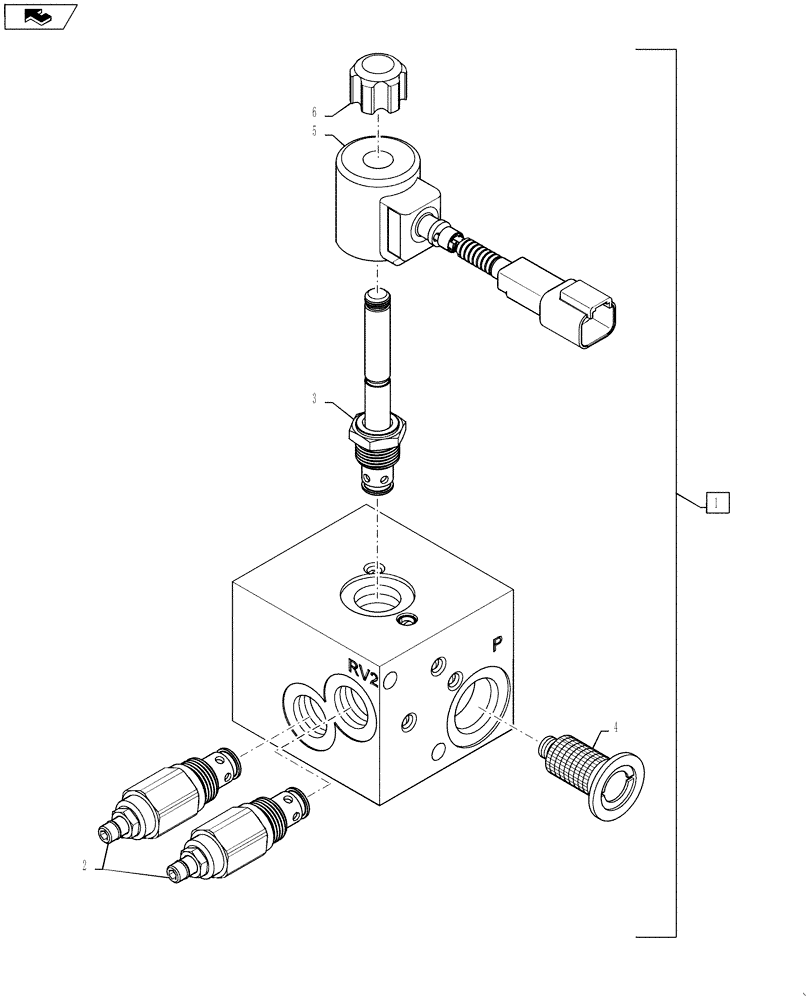

Схема запчастей Case 590SN - (35.726.28[03]) - VALVE - HEAVY LIFT (MECHANICAL CONTROL) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS
2
4
3
1
5
home
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527714

CONTROL VALVE

CONTROL VALVE; 580SN, 590SN; Incl 2 - 6

1шт.

1

84527720

CONTROL VALVE

CONTROL VALVE; 580SN WT; Incl 2 - 6

1шт.

2

84338932

VALVE

Relief

2шт.

3

84545954

SOLENOID VALVE

SOLENOID VALVE

1шт.

4

84338934

FILTER STRAINER

1шт.

5

84338935

COIL

1шт.

6

84338936

SERVICE KIT

Solenoid Nut; Incl O-Ring

1шт.
