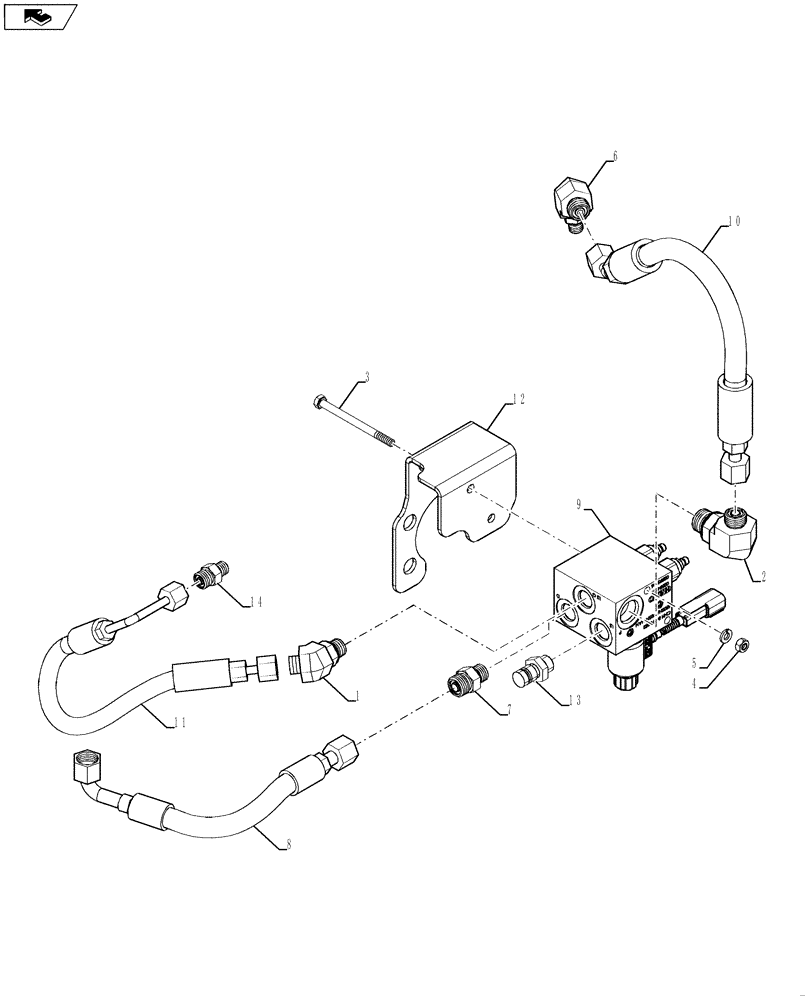

Запчасти Case 590SN (35.726.28[01]) - HYDRAULICS - HEAVY LIFT (MECHANICAL CONTROL) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

1

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

2

201-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

3

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

4

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

5

892-11006

LOCK WASHER,M6

2шт.

6

9843592

ELBOW,11/16"-16 UN-2A x 7/16"-20UN-2A

1шт.

7

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

8

84252236

HYD TUBE,10mm ID x 262mm L

1шт.

9

84272882

VALVE

580SN, 590SN

1шт.

9

84272883

VALVE

580SN WT

1шт.

10

84332151

HOSE ASSY.,10mm ID x 374mm L

1шт.

11

84332166

HOSE ASSY.,6.3mm ID x 372mm L

1шт.

12

84333112

BRACKET

1шт.

13

86596853

QUICK MALE COUPLING,9/16"-18

1шт.

14

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.
