(35.726.27[02]) - VALVE - HEAVY LIFT (PILOT CONTROL) (580SN, 580SN WT, 590SN)

Запчасти Case 590SN (35.726.27[02]) - VALVE - HEAVY LIFT (PILOT CONTROL) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

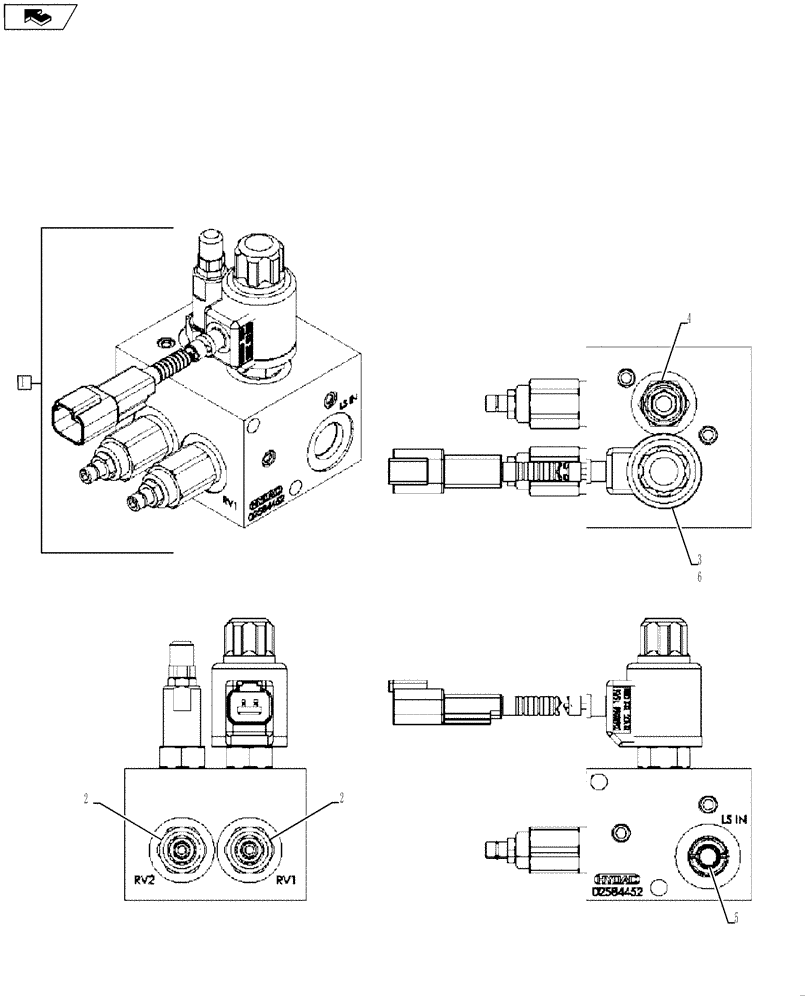

Схема запчастей Case 590SN - (35.726.27[02]) - VALVE - HEAVY LIFT (PILOT CONTROL) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS
4
2
2
6
1
5
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84272884

VALVE

580SN, 590SN

1шт.

1

84272885

VALVE

580SN WT

1шт.

2

84338932

VALVE

1шт.

3

84338933

VALVE

1шт.

4

84338937

VALVE

1шт.

5

84338938

FILTER

1шт.

6

84338935

COIL

1шт.

7

84338936

SERVICE KIT

Solonoid nut (Not Shown)

1шт.
