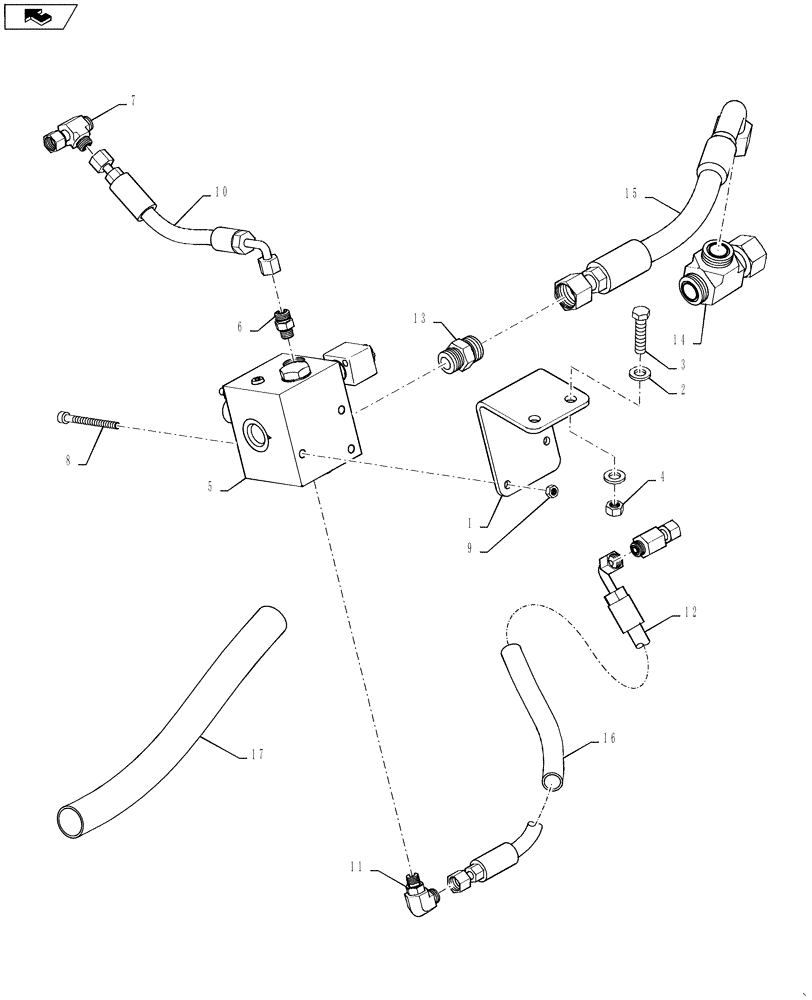

Запчасти Case 590SN (35.726.22[02]) - VALVE INSTALL - HAMMER (PILOT CONTROLS) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

1

84257782

BRACKET

1шт.

2

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

3

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

4

337475

NUT,M12, Cl 10

2шт.

5

84247110

VALVE

1шт.

6

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

2шт.

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

8

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

9

43362

NUT,M8 x 1.25, Cl 10

2шт.

10

84259315

HOSE ASSY.,10mm ID x 288mm L

1шт.

11

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

84262417

HOSE ASSY.,10mm ID x 626mm L

580SN Prior To P.I.N. NBC543163, 580SN WT Prior To P.I.N. NBC545276, 590SN Prior To P.I.N. NBC546294

1шт.

12

84523981

HYDRAULIC HOSE,9.53mm ID x 550mm L, SAE 100R16

HYDRAULIC HOSE; 580SN P.I.N. NBC543163 And After, 580SN WT P.I.N. NBC545276 And After, 590SN P.I.N. NBC546294 And After

1шт.

13

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

86641295

TEE,1-7/16"-12 ORFS to Swivel

If Equipped

1шт.

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

15

84275042

HOSE ASSY.,19mm ID x 411mm L

1шт.

16

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

1шт.

17

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

580SN Prior To P.I.N. NBC543163, 580SN WT Prior To P.I.N. NBC545276, 590SN Prior To P.I.N. NBC546294

1шт.
