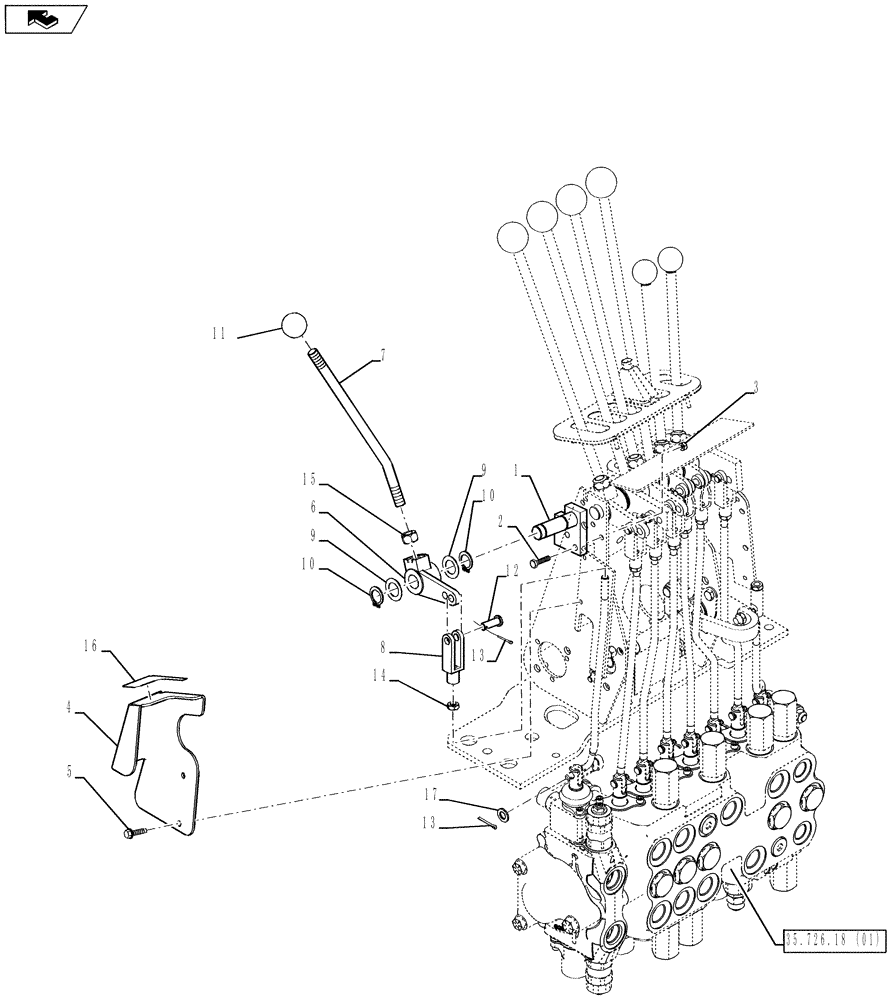

Запчасти Case 590SN (35.726.22[01]) - VALVE INSTALL - BACKHOE CONTROL, BI-AUXILIARY (MECHANICAL CONTROLS) (35) - HYDRAULIC SYSTEMS

1

87425117

PIVOT

1шт.

2

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

3

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

4

87425122

BRACKET

1шт.

5

281-14716

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1"

2шт.

6

182006A1

LEVER

1шт.

7

221477A1

THREADED ROD,1/2"-20 UNF x 250mm L

1шт.

8

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

9

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

2шт.

10

103-1475

SNAP RING,#75, Ext

2шт.

11

D59912

KNOB

1шт.

12

D149288

PIN,8.33mm OD x 30.66mm L

1шт.

13

432-612

COTTER PIN,3/32" x 3/4"

3шт.

14

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

15

425-118

NUT,1/2"-20, G5

1шт.

16

87430677

DECAL

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
