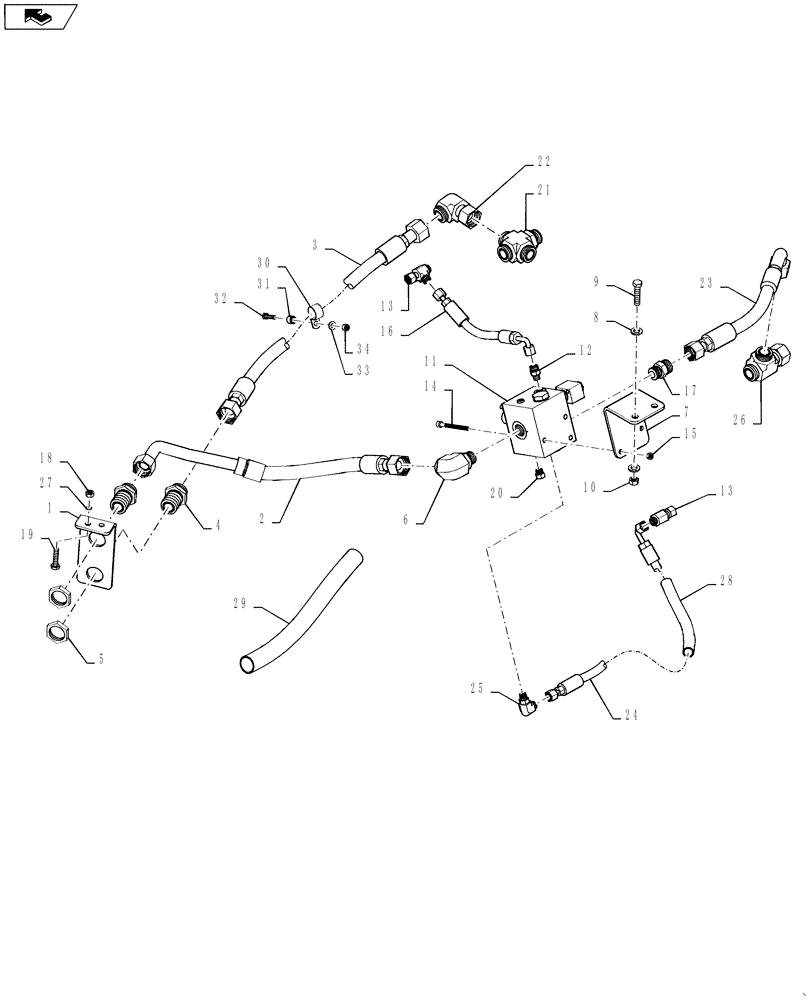

Запчасти Case 590SN (35.726.21[01]) - VALVE INSTALL - BACKHOE CONTROL, SINGLE AUX (PILOT CONTROLS) VARIABLE VALVE PUMP (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

1

84407250

BRACKET, SUPPORTING

1шт.

2

84407248

HYD TUBE

1шт.

3

84407245

HYDRAULIC HOSE,19mm ID x 953mm L

Return

1шт.

3

48043962

HYDRAULIC HOSE,19mm ID x 953mm L

Return, Start Year: 27-JUL-16

1шт.

4

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

2шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

5

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

2шт.

6

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

1шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

84257782

BRACKET

1шт.

8

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

9

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

10

337475

NUT,M12, Cl 10

2шт.

11

84247110

VALVE

1шт.

12

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

2шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

15

43362

NUT,M8 x 1.25, Cl 10

2шт.

16

84259315

HOSE ASSY.,10mm ID x 288mm L

1шт.

17

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

17

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

86500689

NUT,M10 x 1.5, Cl 10

2шт.

19

86508618

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

20

76349

PLUG,9/16" - 18 ORB

1шт.

21

84259313

FITTING,1"7/16 - 12 ORFS x 1"5/16 - 12 ORB

1шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

1шт.

22

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

23

84275042

HOSE ASSY.,19mm ID x 411mm L

1шт.

24

84262417

HOSE ASSY.,10mm ID x 626mm L

580SN Prior To P.I.N. NBC543163, 580SN WT Prior To P.I.N. NBC545276, 590SN Prior To P.I.N. NBC546294

1шт.

24

84523981

HYDRAULIC HOSE,9.53mm ID x 550mm L, SAE 100R16

HYDRAULIC HOSE; 580SN P.I.N. NBC543163 And After, 580SN WT P.I.N. NBC545276 And After, 590SN P.I.N. NBC546294 And After

1шт.

25

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

86641295

TEE,1-7/16"-12 ORFS to Swivel

If Equipped

1шт.

26

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

27

3416158

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

28

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

1шт.

29

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

580SN Prior To P.I.N. NBC543163, 580SN WT Prior To P.I.N. NBC545276, 590SN Prior To P.I.N. NBC546294

1шт.

30

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

31

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

32

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

33

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

34

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
