Запчасти Case 590SN (35.726.20[02]) - VALVE INSTALL - BACKHOE CONTROL, SINGLE AUX (MECHANICAL CONTROLS) (35) - HYDRAULIC SYSTEMS

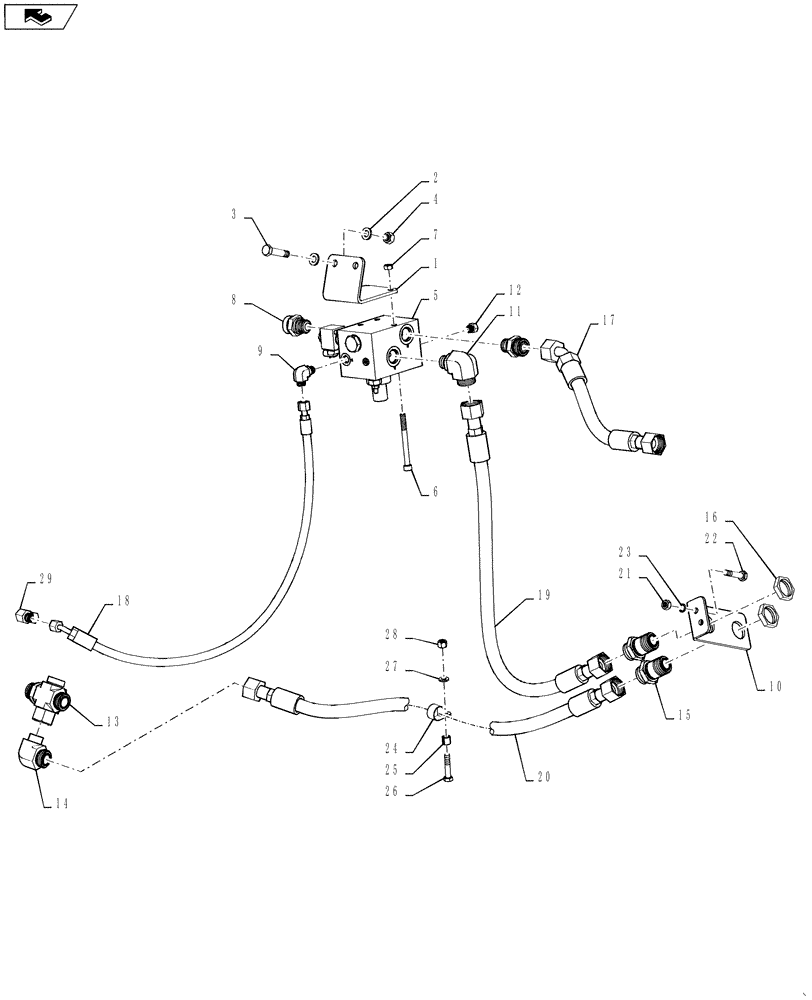

Схема запчастей Case 590SN - (35.726.20[02]) - VALVE INSTALL - BACKHOE CONTROL, SINGLE AUX (MECHANICAL CONTROLS) (35) - HYDRAULIC SYSTEMS
12
26
3
17
5
22
25
7
home
21
1
16
28
4
10
8
23
14
6
11
29
9
19
15
13
24
27
18
2
20

Артикул

Название

Примечание

Количество

1

84257782

BRACKET

Backhoe Auxiliary Valve Mounting

1шт.

2

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

3

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

4

337475

NUT,M12, Cl 10

2шт.

5

84247109

VALVE

Open Center Single Aux

1шт.

6

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

7

43362

NUT,M8 x 1.25, Cl 10

2шт.

8

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

9

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

10

84407250

BRACKET, SUPPORTING

Bulkhead

1шт.

11

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

1шт.

12

76349

PLUG,9/16" - 18 ORB

1шт.

13

84259313

FITTING,1"7/16 - 12 ORFS x 1"5/16 - 12 ORB

1шт.

14

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

1шт.

15

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

2шт.

16

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

2шт.

17

84283270

HOSE ASSY.,19mm ID x 415mm L

Aux Valve to Backhoe Valve

1шт.

18

84514723

HOSE ASSY.,10mm ID x 1035mm L

Aux Valve Filter

1шт.

19

84407246

HYD TUBE,19mm ID x 970mm L

1шт.

20

84407245

HYDRAULIC HOSE,19mm ID x 953mm L

Return

1шт.

20

48043962

HYDRAULIC HOSE,19mm ID x 953mm L

Return, Start Year: 27-JUL-16

1шт.

21

86500689

NUT,M10 x 1.5, Cl 10

2шт.

22

86508618

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

23

3416158

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

24

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

25

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

26

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

27

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

29

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

Выбрано товаров: 30
