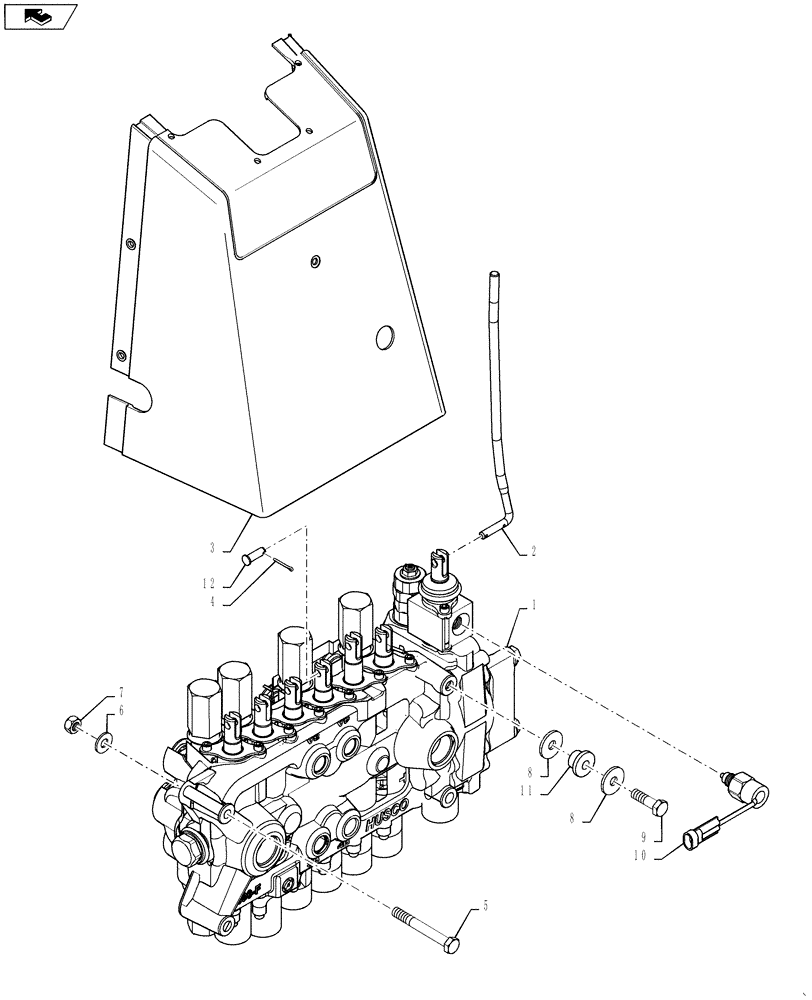

Запчасти Case 590SN (35.726.19[04]) - VALVE INSTALL - BACKHOE CONTROL, 7 SPOOL (HAND SWING) (35) - HYDRAULIC SYSTEMS

1

84273247

VALVE

Backhoe; 7 Spool; Hand Swing

1шт.

2

84398267

ADJUSTMENT ROD,9.525mm D x 315.2mm L

Auxiliary Hydraulic; 7 Spool

1шт.

3

87411084

COVER

Front Backhoe Console; 2 Lever

1шт.

4

432-612

COTTER PIN,3/32" x 3/4"

6шт.

5

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.

9

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

10

84128131

SOLENOID

Spool Lock With Diode

1шт.

11

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

12

D149287

PIN,7.9mm OD x 26.72mm L

6шт.
