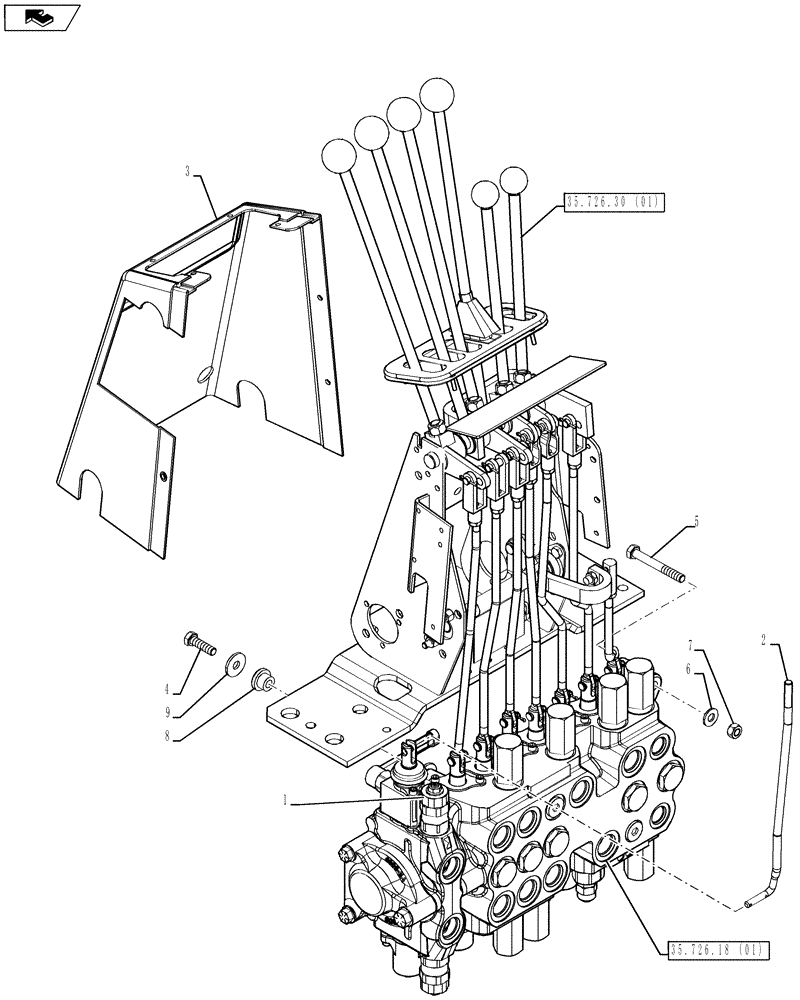

Запчасти Case 590SN (35.726.19[01]) - VALVE INSTALL - BACKHOE CONTROL, 8 SPOOL (FOOT SWING) (35) - HYDRAULIC SYSTEMS

1

84268578

SOLENOID

1шт.

2

84264007

ADJUSTMENT ROD

1шт.

3

87411083

COVER

1шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

5

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

6

NS

NOT SERVICED

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

9

NS

NOT SERVICED

2шт.
