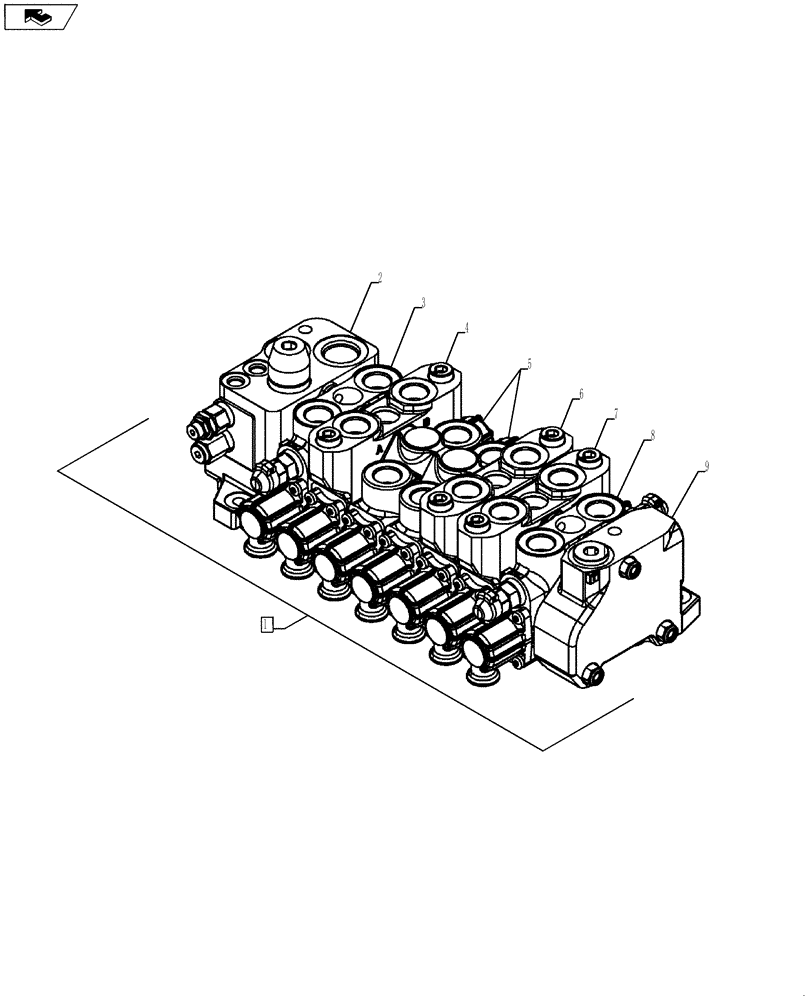

Запчасти Case 590SN (35.726.17[03]) - VALVE - BACKHOE CONTROL, 7 SPOOL (W/O EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

1

84214061

PILOT VALVE

580N

1шт.

1

84269981

PILOT VALVE

580SN, 580SN WT,590SN

1шт.

2

85811915

HYD VALVE SECTION

Outlet

1шт.

84492790

SERVICE KIT

Dual Aux Pilot Std.; Incl. Ref. 3, 10; Also Incl. Fig. 35.150.15(02) Ref. 13, 14, 15

1шт.

3

84278691

HYD VALVE SECTION

Bi-Dir Pilot

1шт.

4

84278702

HYD VALVE SECTION

Bucket

1шт.

5

84278710

HYD VALVE SECTION

Dipper

2шт.

6

84157939

HYD VALVE SECTION

Stabilizer

1шт.

7

84278714

HYD VALVE SECTION

Boom

1шт.

7

84278714R

REMAN-HYD VALVE

Reman Valve - Boom

1шт.

7

84278714C

CORE-VALVE HYD

Core Return Number

1шт.

8

87751023

HYD VALVE SECTION

Swing

1шт.

9

84355708

HYD VALVE SECTION

Inlet Gear Pump, 580N

1шт.

9

84278712

HYD VALVE SECTION

Inlet Gear Pump, 580SN, 580SN WT,590SN

1шт.

10

87751102

BOLT

1шт.
