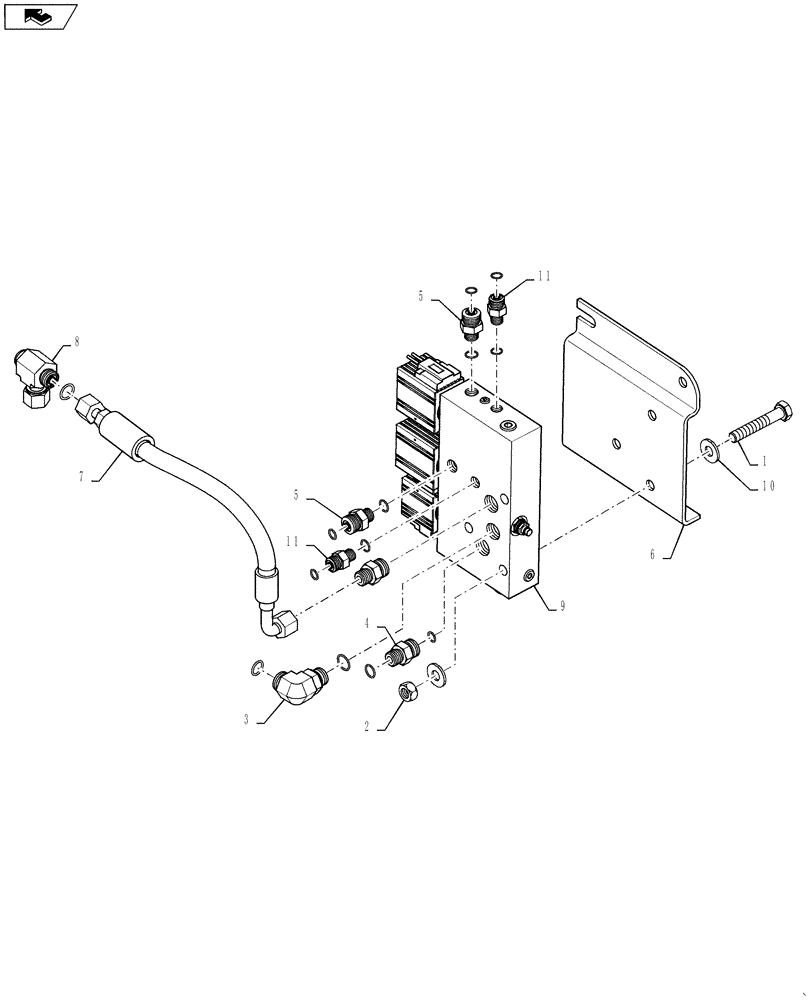

Запчасти Case 590SN (35.726.12[06]) - VALVE INSTALL - DUAL COUPLER (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

1

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

2

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

3

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

84261550

FITTING,11/16"-6 ORFS x 1/2"-5 ORB

2шт.

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

6

84275116

BRACKET

1шт.

7

84514721

HOSE ASSY.,10mm ID x 360mm L

Coupler Return

1шт.

8

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

1шт.

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

87435910

SOLENOID VALVE

Dual Coupler

1шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

11

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

2шт.

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
