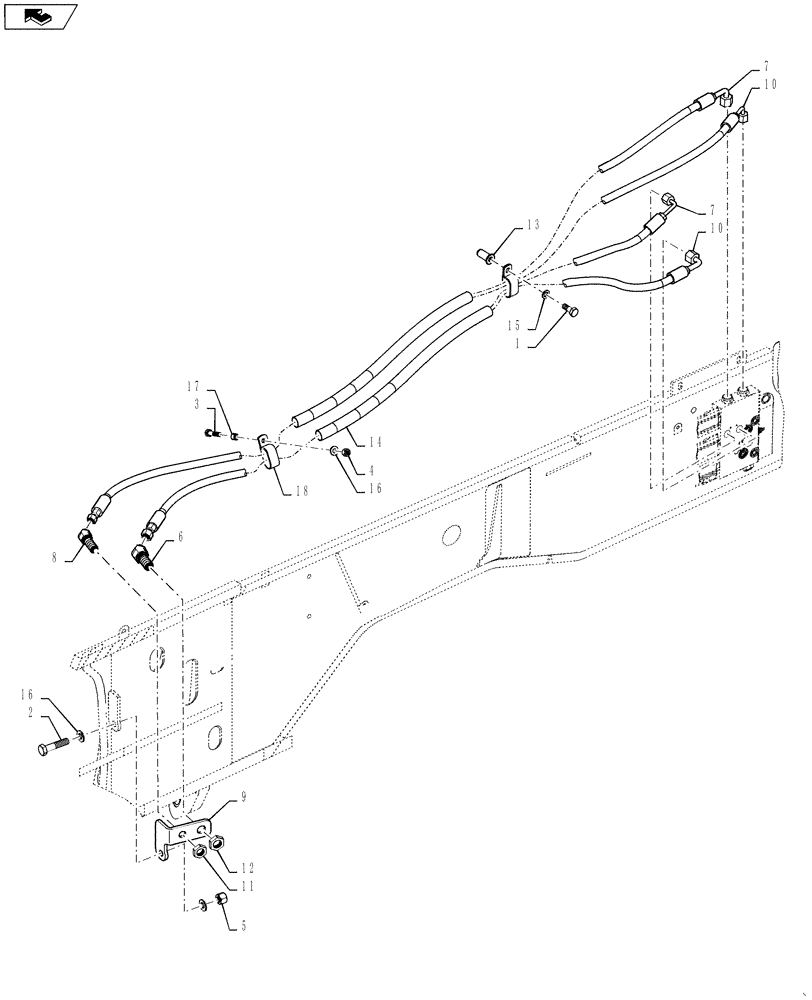

Запчасти Case 590SN (35.726.12[02]) - HYDRAULICS - COUPLER VALVE TO BULKHEAD (35) - HYDRAULIC SYSTEMS

1

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

2

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

3

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

6

84285335

45 ELBOW,11/16"-16 ORFS

45D Bulkhead ORFS 10MM

1шт.

7

84329631

HOSE ASSY.,6.3mm ID x 1594mm L, SAE 100R16 Type S

Coupler B Port

1шт.

8

84331286

45 ELBOW,9/16"-18 ORFS

45, Bulkhead ORFS 6MM

1шт.

9

84332789

BRACKET

Bulkhead

1шт.

10

84395678

HOSE ASSY.,6.3mm ID x 1690mm L

Coupler A Port

1шт.

11

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

1шт.

12

87010704

BHD LOCK NUT,11/16"-16

1шт.

13

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.

14

87452021

PROTECTIVE SLEEVE,19mm ID x 650mm L

2шт.

15

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

17

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

18

L101181

CLAMP,0.75" D Clamping pipes x 2

2шт.
