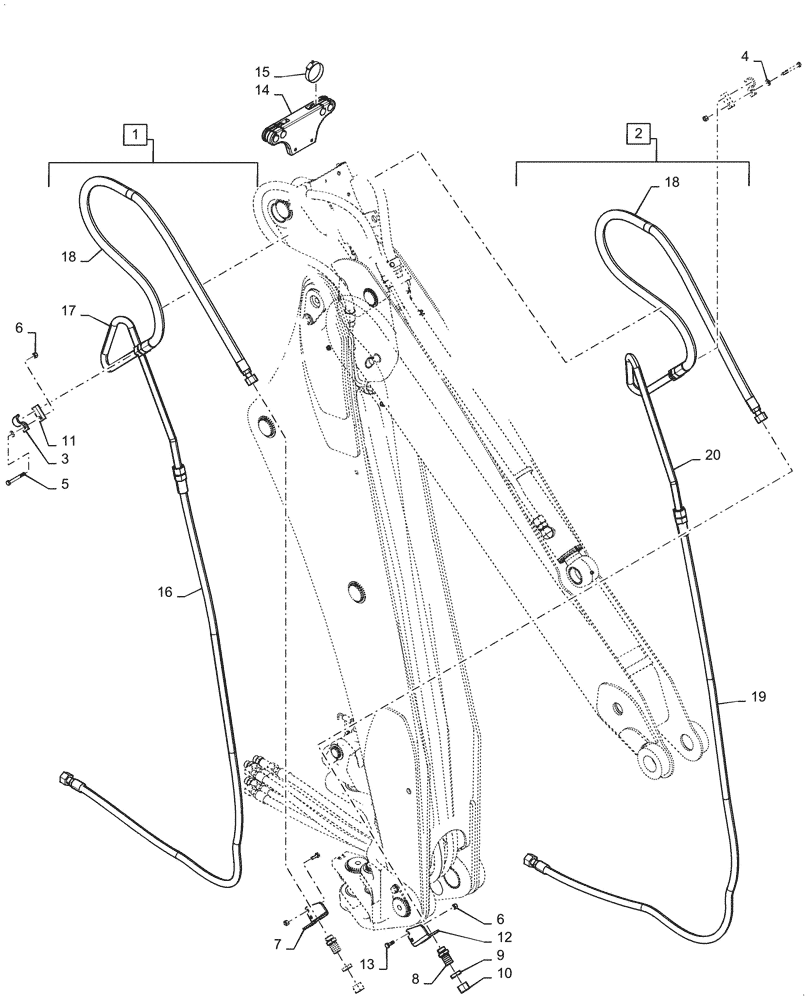

Запчасти Case 590SN (35.726.11[02]) - HYDRAULICS - BACKHOE AUXILIARY, EXTENDABLE DIPPER (590SN) (35) - HYDRAULIC SYSTEMS

1

84294434

HYD TUBE

Assy, Gray, Incl 16 - 18

1шт.

2

84294435

HYD TUBE

Assy, Purple, Incl 18 - 20

1шт.

3

242459A1

SHIN

2шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

5

87015575

BOLT,Hex, M10 x 85mm, Cl 8.8

2шт.

6

412141

NUT,M10 x 1.5, Cl 8

6шт.

7

84305006

BRACKET

1шт.

8

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

2шт.

9

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

10

201-907

CAP,1-3/16" - 12 ORFS

2шт.

11

84299978

PLATE

2шт.

12

84305054

BRACKET

1шт.

13

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

14

84359766

SUPPORT

1шт.

15

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

2шт.

16

84343947

HOSE,19mm ID x 2800mm L

1шт.

17

84343059

TUBE

1шт.

18

84299653

HOSE ASSY.,19mm ID x 2030mm L

1шт.

19

84343946

HOSE,19mm ID x 2795mm L

1шт.

20

84343077

TUBE

1шт.
