(35.726.04[04]) - VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/ EXT DIPPER, W/O AUX HYDS)

Запчасти Case 590SN (35.726.04[04]) - VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/ EXT DIPPER, W/O AUX HYDS) (35) - HYDRAULIC SYSTEMS

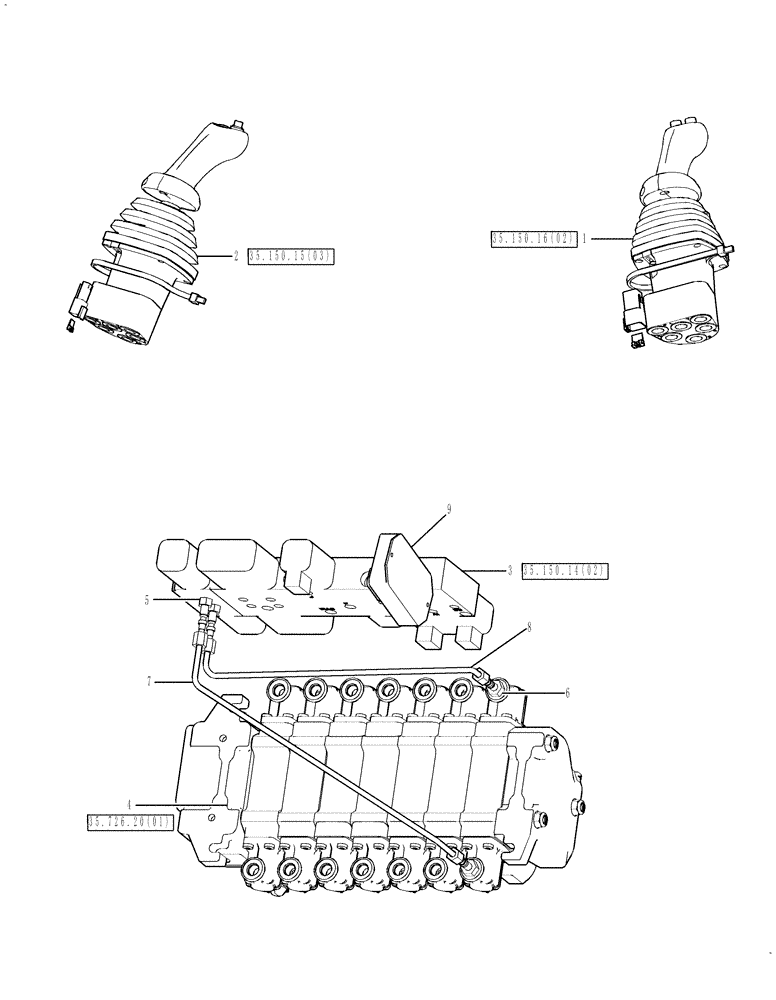

Схема запчастей Case 590SN - (35.726.04[04]) - VALVE - PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/ EXT DIPPER, W/O AUX HYDS) (35) - HYDRAULIC SYSTEMS
5
3
7
6
35.150.14(02)
35.726.20(01)
35.150.15(03)
9
2
4
35.150.16(02)
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

87685948

JOYSTICK

1шт.

3

85827471

HYDRAULIC VALVE

1шт.

4

84269982

PILOT VALVE

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

6

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

2шт.

7

87437633

HYD TUBE

1шт.

B Port White/Blue to E

1шт.

8

87437635

HYD TUBE

1шт.

A Port White to F

1шт.

9

84203219

MODULE

Pilot, 6 or 7 Spool

1шт.
